    Semi Automatic Split Clean In Place System 5000L Per Hour For Equipment Washing

    Ask Lasest Price
    Brand Name : BEYOND
    Model Number : BY-800L
    Certification : ISO9001
    Price : USD13600-33500USD
    Payment Terms : L/C, T/T
    Supply Ability : 60sets per year
    Delivery Time : 40-60working days
    • Product Details
    • Company Profile

    Semi Automatic Split Clean In Place System 5000L Per Hour For Equipment Washing


    2000L/3000L5000L per hour semi-automatic spilit Cleaning In Place machine/CIP Cleaning System for equipment washing


    Semi-automatic split type CIP cleaning system


    Structure:

    The hearing way for the cleaning liquid is auto-heating. The operating principle is to set the cleaning temperature through the temperature controller to control the steam control valve’s opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopts the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced. The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers should increase the water when the tank lack of water.

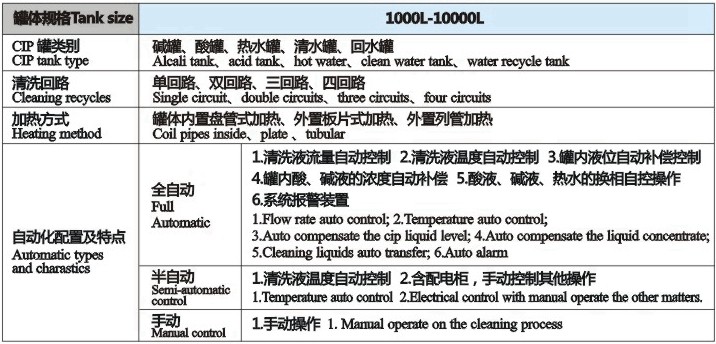

    CIP Tank size1000L-10000L
    CIP tank typeAlcali tank, acid tank, hot water, clean water tank, water recycle tank
    Cleaning recyclesSingle circuit, double circuits, three circuits, four circuits
    Heating methodCoil pipes inside, plate heat exchanger ,tubular heat exchanger
    Automatic types and charactersSemi-automatic
    1. temperature auto control
    2. Electrical control with manual operate the other matters.

    Tank size1000L-10000L
    CIP tank typeAlkali tank, acid tank, hot water, clean water tank, water recycle tank
    Cleaning recyclesSingle circuit, double circuits, three circuits, four circuits
    Heating methodCoil pipes inside, plate heating, tubular heating
    Automatic types and characters

    Full Automatic

    type

    1.flow rate auto control;

    2.temperature auto control;

    3.auto compensate the CIP liquid level;

    4.auto compensate the liquid concentrate;

    5.cleaning liquids auto transfer;

    6.auto alarm

    Semi-automatic type

    1.temperature auto control

    2. electrical control with manual operate the other matters.

    Manual type1.manual operate on the cleaning process

    Semi Automatic Split Clean In Place System 5000L Per Hour For Equipment Washing


    Semi Automatic Split Clean In Place System 5000L Per Hour For Equipment WashingSemi Automatic Split Clean In Place System 5000L Per Hour For Equipment Washing


    Semi Automatic Split Clean In Place System 5000L Per Hour For Equipment Washing


    Semi Automatic Split Clean In Place System 5000L Per Hour For Equipment WashingSemi Automatic Split Clean In Place System 5000L Per Hour For Equipment Washing

    Other model available:

    1Manual CIP system300L/500L/1000LManual operating cleaning process
    2Semi-automatic CIP system

    1000L/1500L/2000L/3000L

    /4000L/5000L/6000L/7000L/8000L/10000L

    Automatic temperature control;

    Electrical control with manual operating the process;

    3Full automatic CIP system

    1000L/1500L/2000L/3000L

    /4000L/5000L/6000L/7000L/8000L/10000L

    1.automatic flow rate control;

    2. automatic temperature control;

    3. Automatic CIP liquid level compensate control;

    4. automatic switch of cleaning liquids;

    5. automatic alarm
