    5 - 50 T/H Juice Making Machine Apple Processing Line For Apple / Pear Juice

    Ask Lasest Price
    Brand Name : Shanghai Beyond
    Model Number : BY-AL
    Certification : ISO9001/CE/SGS
    Price : Negotiation
    Supply Ability : 50 Sets Per Season
    Delivery Time : 50-100 working days upon receipt of payment and confirmed the drawings
    • Product Details
    • Company Profile

    5 - 50 T/H Juice Making Machine Apple Processing Line For Apple / Pear Juice

    5-50T/H Apple Clear and Cloudy Juice Processing Line


    Specifications:


    Brand Name:Shanghai Beyond
    Model Number:BY-AL
    Capacity5-50T/H
    Raw materialFresh apple/pear
    End productNFC fresh apple/pear juice, concentrated apple/pear juice, clear apple/pear juice
    Juice yield60-75%
    Fresh fruit input brix10-12brix(for fresh fruit)
    End product output brix65-72Brix
    Package for end productAseptic large bag in drum/ glass bottle/PET bottle, Roof type carton box/ brick shape carton
    Certification:ISO9001/CE/SGS
    Main material for machinesSUS304 or SUS316
    Place of Origin:China
    Manufacturer historyMore than 10years
    Voltage380V 50Hz/110V 60hz/415V 50Hz
    Power consumption(Kw)energy saving type, about 100-500kw,
    Operator neededAbout 6-20persons
    Cooling water consumptionAbout 80-300M3
    Steam consumptionAbout 300-5000T/H,
    Factory space neededAbout 500-5000Sqm
    Warranty12 months after commissioning

    After sales service

    Engineers available to service machinery overseas

    Description:


    China is the world's largest producer of apples and pears products. The end product is divided into transparent/clear juice, cloudy juice, NFC fresh nature juice, and juice concentrate.

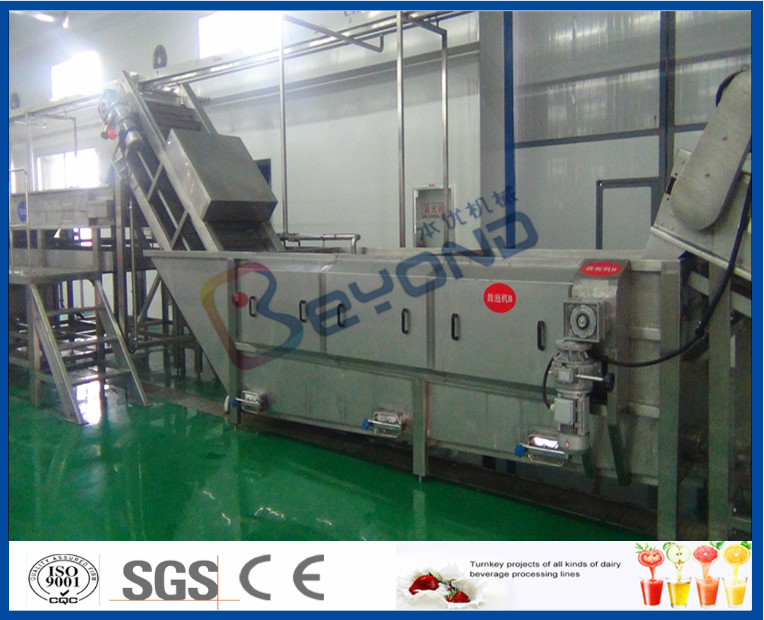

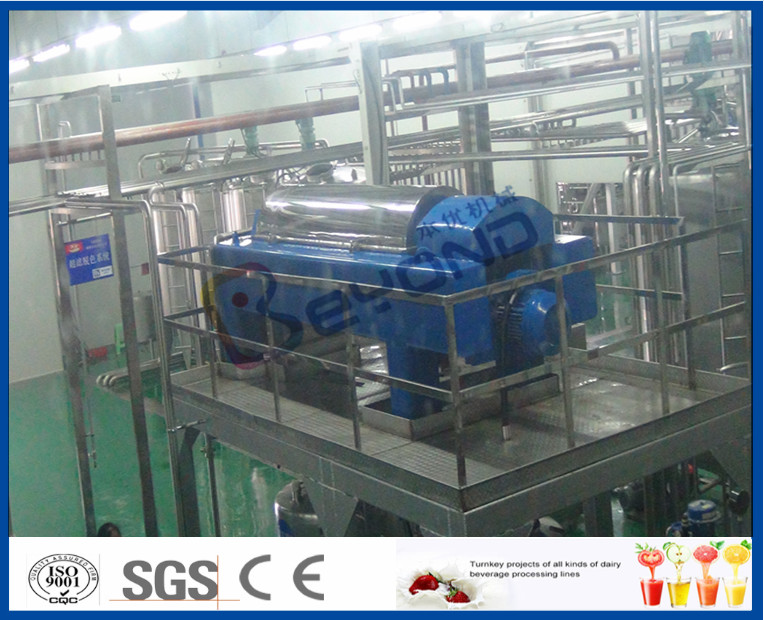

    Complete plant of apples and pears processing equipments include washing ,crushing, squeeze extractor, enzymolysis, evaporator, sterilizer, aseptic filling and etc. Beyond has created apple and pears processing equipments with different designs like crusher, squeeze extractor which are featured as simple construction, easy operation, and high production efficiency, these have positioned Shanghai Beyond Machinery as the Chinese market leader in the worldwide.

    Features and advantages


    The processing capacity is varied from 60 tons/day to 2000 tons/day.

    The line is also suitable for processing the fruits that share the similar characteristics;

    Automatic disinfection liquid concentration control system, effectively guarantee the sterilization effect and control the disinfection residue

    Efficient crusher improved the high output percentage of apples and pears

    Using efficient belt juice extractor to improve the juice efficiency and the output percentage

    The full automatic PLC controlled production process to reduce the labor intensity and Improve production efficiency

    Low-temperature vacuum evaporation greatly reduce the flavor substances and nutrient losses

    A variety of energy recovery measures , increased the energy utilization and greatly reduce production cost

    Tubular UHT sterilizer and Aseptic filling machine, Isolated from the pollution of bacteria, ensure the safety of the food and extend the shelf life of the product

    A complete set of production with self CIP system reduce the labor intensity and ensure the high level sanitation.


    Project samples:


    No.Project informationPlaceRemark
    15 t/H pear juice production lineHebei CangzhouTurnkey project
    25 t/H apple vinegar production lineShandong yantai longkouSterilization and after-filling equipments
    310 t/H fruit juice with fruit grain production lineBeijingTurnkey project
    4Concentrated fruit juice production line

    Fujian Sanming

    Original fruit pre-process project
    512000 p/H wild papaya beverage production lineGuizhou zunyiTurnkey project
