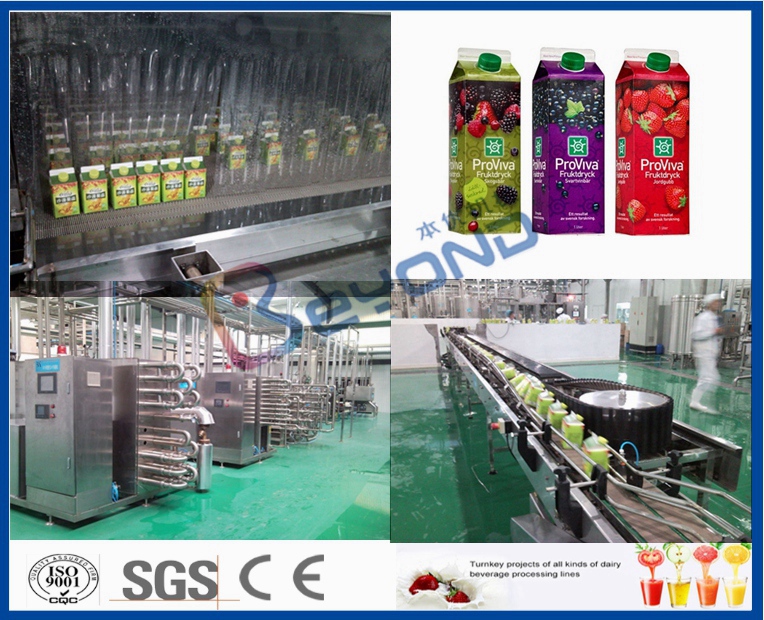

Fruit juice beverage processing line tea beverage production line food beverage line
Complete Fruit juice, Tea, Food Beverage Processing Line
Specific Description
Taken various fruit juice, fruit juice concentrate, tea leaf, tea powder, cereal, health care ingredients as main raw material, through dilution, extraction, cooking, grinding, homogenization, degassing and filling etc flow procedures, which can be manufactured into various fruit juice, tea, food functional drinks. The package way can be Pre-pak pouch, plastic bag, Gable top bag, plastic cup, plastic bottle, glass bottle and sanitary can etc. Factories usually fabricate them into long life end products, shelf life can be one year or longer.
DESCRIPTION
Characteristics
Processing capacity can be ranged from 2T/Day to 1000T/Day.
You can process different fruit juice, fruit juice concentrate, tea leaf, cereal and health care ingredients into various liquid beverage.
High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in various beverage processing line.
PLC control the whole production line, saving labor force and facilitate production management.
Full-auto CIP cleaning, to ensure whole production line equipments
meet food sanitary safety requirements.
ADVANTAGES AND STRONG POINTS
Technical parameters
Raw material | Various fruit juice, juice concentrate, tea leaf, tea powder, cereal, health care ingredients |
End product | Various fruit juice, tea, food, functional beverage |
Capacity | 2T/D – 1000T/D |
End product package | Pre-pak pouch, plastic bag, Gable top bag, Plastic cup, plastic bottle, glass bottle, sanitary can etc. |
Plant beverage blending and formulation tank
The sugar-acid ratio directly affects the taste of the beverage.The
appropriate sugar-acid ratio is 13.1-15.1.Generally,white sugar is
used as a sweetener,citric acid is used as a sour agent,and which
is also has a certain preservative effect.As an antioxidant,vitamin
C is not only a nutrient needed by the human body,but also has an
antioxidant function.In addition,adding different flavors and
pigments can not only make different beverages,but also improve the
appearance of the product.
Plant beverage clarification and homogenization
Due to the need for clarified and transparent juice,some plant
beverages requir clarification during the production process to
remove suspended solids in the juice.Usaually need to use a
centrifuge to clarify.
Plant beverage sterilizing and filling
According to the composition characteristics of plant
beverages,different sterilization processes can be used,generally
high-temperature short-term sterilization or ultra-high temperature
instantaneous sterilization process is adopted.The homogenized
material is sealed and filled,and sterilized at 121℃ and pressure
2kpa for 15-20min.For heat-sensitive and nutrient-containing plant
beverages,they can be filled into containers after sterilization at
130-140℃ and 3-4S.
![]() |
