    8000 - 10000BPH Functional Beverage Soft Drink Production Line With Bag Type Duplex Filter

    Ask Lasest Price
    Brand Name : Shanghai Beyond
    Model Number : BY-SD
    Certification : ISO9001/CE/SGS
    Price : Negotiation
    Supply Ability : 50 Sets Per Season
    Delivery Time : 60-100 working days upon receipt of payment and confirmed the drawings
    Payment Terms : T/T or L/C
    • Product Details
    • Company Profile

    8000 - 10000BPH Functional Beverage Soft Drink Production Line With Bag Type Duplex Filter

    3000-4000BPH grape flavor CO2 soft Drink mixing system with PET bottle filling


    Detailed Product Description for juice production line:

    We offer turnkey project for different production capacity requirement.

    And those products include Dairy,drinking, juice,ice cream, beverage,cream,ghee,butter etc.

    and other liquid food.
    we supply services from consultancy,design,manufacture,installation,debugging and after service etc.
    for beverage production, the raw material can be juice concentrate or flavore powder.
    or tea beverage use tea leaves or tea powder.
    then with prepare unit to melt the sugar and other accessary materials.
    after standardized and blended, the beverage will be hot filled and afterwards cooling by the chain sterilizer and cooled by tunnel.
    we provide whole line design and installations etc.

    Complete Fruit juice, Tea, Food Beverage Processing Line

    Specific Description

    Taken various fruit juice, fruit juice concentrate, tea leaf, tea powder, cereal, health care ingredients as main raw material, through dilution, extraction, cooking, grinding, homogenization, degassing and filling etc flow procedures, which can be manufactured into various fruit juice, tea, food functional drinks. The package way can be Pre-pak pouch, plastic bag, Gable top bag, plastic cup, plastic bottle, glass bottle and sanitary can etc. Factories usually fabricate them into long life end products, shelf life can be one year or longer.


    DESCRIPTION

    Characteristics

    Processing capacity can be ranged from 2T/Day to 1000T/Day.

    You can process different fruit juice, fruit juice concentrate, tea leaf, cereal and health care ingredients into various liquid beverage.

    High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in various beverage processing line.

    PLC control the whole production line, saving labor force and facilitate production management.


    Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.
    ADVANTAGES AND STRONG POINTS

    Technical parameters

    Raw materialVarious fruit juice, juice concentrate, tea leaf, tea powder, cereal, health care ingredients
    End productVarious fruit juice, tea, food, functional beverage
    Capacity2T/D – 1000T/D
    End product packagePre-pak pouch, plastic bag, Gable top bag, Plastic cup, plastic bottle, glass bottle, sanitary can etc.

    No.SystemNameSpecificationQty.Unit
    1Simple Syrup PreparationSugar/ Ingredients Melting TankV=3000L, steam heating, SUS304, 3 layers with heat insulation, closed type, tapered bottom with dustproof breathing hole, CIP ball-type sprayer, material blender, temperature control meter, food-grade standard welding and polishing2sets
    2Centrifugal Pump for Syrup TransportationQ=10T/h, ABB motor, sanitary type, all product contact surfaces SUS 304 S/S, H=24m. ABB motor1set
    3Bag-type Duplex FilterSUS304, 200mesh, bag filter core1set
    4Plate Heat Exchanger of Syrup Cooling304 S/S frame, SUS 304 plates, EPDM gaskets, inlet 80℃, and outlet 50℃1set

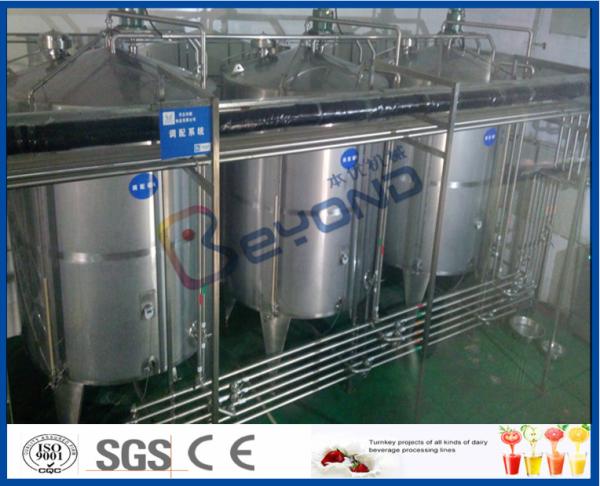

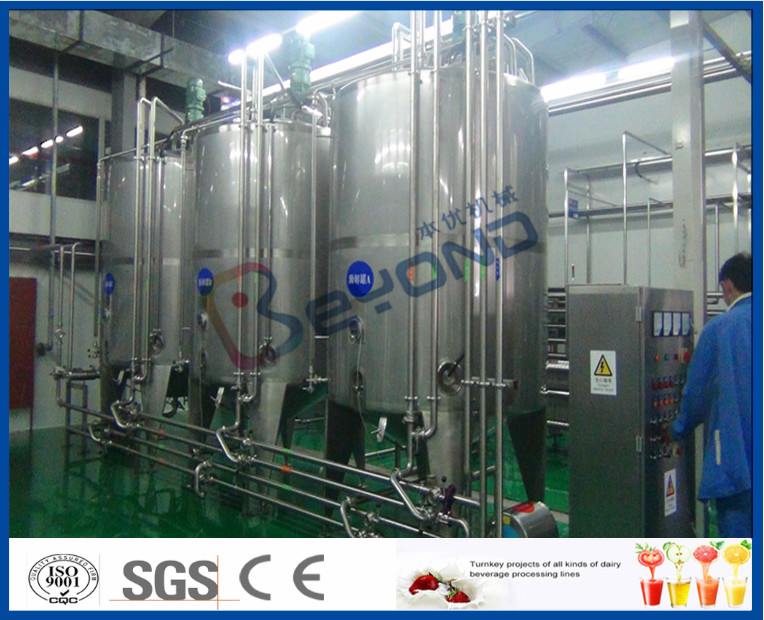

    5Final Syrup PreparationBeverage Mixing TankV=3000L, SUS304, single layer, closed type, tapered bottom with dustproof breathing hole, high-speed blender(60RPM), CIP ball sprayer, liquid level inspection, food-grade standard welding and polishing6sets
    6Centrifugal Pump for Material TransportationQ=10T/h, sanitary type, all product contact surfaces SUS 304 S/S, H=24m. ABB motor3sets
    7Bag-type Duplex FilterQ=10T/h, SUS304, 200 mesh3sets
    8Juice Mixing, Filtering, SterilizingTubular UHT Sterilizer4000L/H, touch screen, temperature automatic recorder, electric control components, etc, S.S control cabinet1set
    9Plate UHT Sterilizer4000L/H, touch screen, temperature automatic recorder, electric control components, etc, S.S control cabinet1set
    10Deaerator4000L/H, SUS304, equipped with aroma recovering system, adopted imported pressure-difference sensor, the vacuum 0.07-0.09Mpa1set
    11Homogenizer4000LPH, 2 Pole Pistons, Max. working pressure is 25Mpa1set
    12Frequency Conversion DeviceFor Homogenizer and UHT speed adjusting, Danfoss from Denmakr1set
    13Fruit Piece Preparation SystemFruit Piece Pasteurizer TankV=1000L, SUS304, three layer, steam heating, closed type, tapered bottom with dustproof breathing hole, high-speed blender, CIP ball sprayer, liquid level inspection, food-grade standard welding and polishing.2sets
    14Screw Pump for Fruit PieceQ=5T/h, sanitary, all product contact surfaces SUS 304 S/S, H=24m, maximum piece passing size: 8mm*8mm*8mm;3sets
    15Product Storing TankV=2000L, SUS304, three layers, heat insulation, square shape, closed type, temperature displayer, CIP ball-type sprayer, liquid level monitor1set
    10Other AuxiliaryCIP SystemSUS304 frame and famous electric control system, 3*2000L, SUS316 inside, heat insulation, equipped with PHE, steam adjusting system, diaphragmatic dosing pump, CIP pump and return pump, and so on.1set
    11Cooling Tower50T, with one pump, water inlet 37℃, outlet 32℃.2sets
    12Steam Generation System2.0T/H, diesel boiler, steam pressure and flux adjusting valve1unit
    13Chilling SystemCapacity is 300000Kcal, ice water outlet temperature ≤-5℃, with chilling machine, chilling medium pump, glycol tank, cooling tower, cooling water pumps, ice water outlet temperature is -5℃ outlet1unit
    14Liquefied CO2 Storage System10000L, horizontal vacuum type, heat insulation, 2.0Mpa, automatic pressure control system, includes filters, liquid-gas type changing device and so on1unit
    15Electric Control CabinetSus304, word famous products1set
    16Operating PlatformSUS 304 S.S.1set
    17Pipeline, Valve, Cable, Bridge and FittingsJust for inner connection of preparation system1set
    18Package and TransportationChinese domestic1set
