    Manufacturing Drinks Soft Drink Machine For Soft Drink Manufacturing Plant

    Ask Lasest Price
    Brand Name : Shanghai Beyond
    Model Number : BY-SD
    Certification : ISO9001/CE/SGS
    Price : Negotiation
    Supply Ability : 50 Sets Per Season
    Delivery Time : 60-100 working days upon receipt of payment and confirmed the drawings
    Payment Terms : T/T or L/C
    • Product Details
    • Company Profile

    Manufacturing Drinks Soft Drink Machine For Soft Drink Manufacturing Plant

    12TPH GEA standard PET hot filling juice line energy juice line, fruit pulp juice line


    Detailed Product Description for juice production line:

    We offer turnkey project for different production capacity requirement.

    And those products include Dairy,drinking, juice,ice cream, beverage,cream,ghee,butter etc.

    and other liquid food.
    we supply services from consultancy,design,manufacture,installation,debugging and after service etc.
    for beverage production, the raw material can be juice concentrate or flavore powder.
    or tea beverage use tea leaves or tea powder.
    then with prepare unit to melt the sugar and other accessary materials.
    after standardized and blended, the beverage will be hot filled and afterwards cooling by the chain sterilizer and cooled by tunnel.
    we provide whole line design and installations etc.

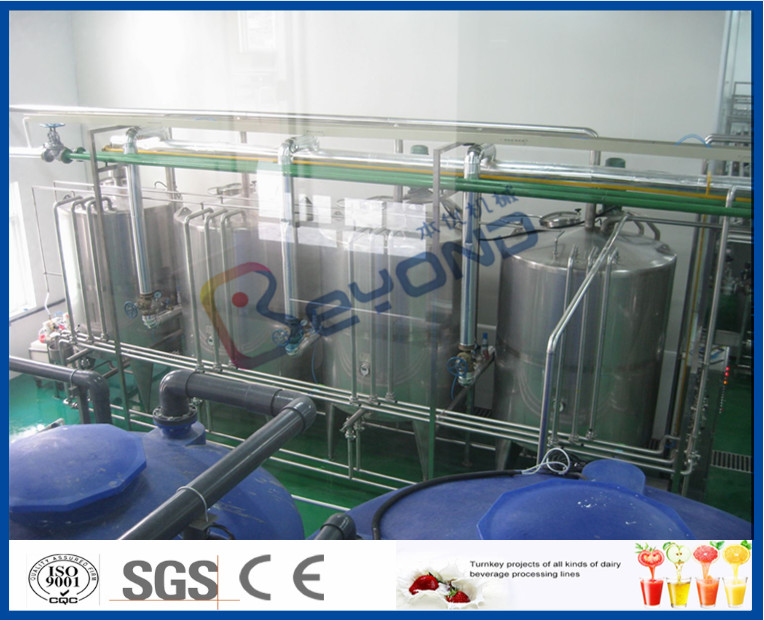

    Complete Fruit juice, Tea, Food Beverage Processing Line

    Specific Description

    Taken various fruit juice, fruit juice concentrate, tea leaf, tea powder, cereal, health care ingredients as main raw material, through dilution, extraction, cooking, grinding, homogenization, degassing and filling etc flow procedures, which can be manufactured into various fruit juice, tea, food functional drinks. The package way can be Pre-pak pouch, plastic bag, Gable top bag, plastic cup, plastic bottle, glass bottle and sanitary can etc. Factories usually fabricate them into long life end products, shelf life can be one year or longer.


    DESCRIPTION

    Characteristics

    Processing capacity can be ranged from 2T/Day to 1000T/Day.

    You can process different fruit juice, fruit juice concentrate, tea leaf, cereal and health care ingredients into various liquid beverage.

    High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in various beverage processing line.

    PLC control the whole production line, saving labor force and facilitate production management.


    Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.
    ADVANTAGES AND STRONG POINTS

    Technical parameters

    Raw materialVarious fruit juice, juice concentrate, tea leaf, tea powder, cereal, health care ingredients
    End productVarious fruit juice, tea, food, functional beverage
    Capacity2T/D – 1000T/D
    End product packagePre-pak pouch, plastic bag, Gable top bag, Plastic cup, plastic bottle, glass bottle, sanitary can etc.

    NO.FLOW NO.NAMEMAIN TECHNOLOGY PARAMETERUNITQTY
    1ASUGAR DISSOLVING UNIT
    2A-1Blending tankSUS304 stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feetSet2
    3A-2Centrifugal pumpSUS304 stainless steel, pump lift is 24 meters, mechanical sealSet1
    4A-3Plate HeaterSUS304 stainless steel,steam heating, 25-55℃pcs1
    5A-4Steam control systemSpriax Sarco steam control system,JUMO temperatrue sensorSet1
    6A-5High speed sugar dissolving machineMaterial SUS 304 for main machine, capacity is 8T/H, based on dry sugar, with sugar feeding platformSet1
    7A-6Screw conveyor for feeding sugarSUS304, half circle shapecan be disassembled for cleaning, with product feeding hopper, size 6M*0.3M*0.3MSet1
    8A-7FilterSUS304 stainless steel, filter element 100 meshSet1
    9A-8Centrifugal pumpSUS304 stainless steel, pump lift is 36 meters, mechanical sealSet1
    10 Vortex flowmeterSUS304, clamping type, 4-20 signal output, pulse countingSet1
    11 Pneumatic butterfly valveSUS304, weld type, with proximity switch supportSet3
    12 Proximity switchModel: DW-AD-623-M12-12, PNP, flat headSet3
    13 Subtotal A
    14BPASTEURIZE & BLENDING UNIT
    15B-1Plate type pasteurizerSUS304 stainless steel, plate type, inlet temperature 50℃, pasteurizing temperature 95℃, holding tube 30S for milk ,outlet temperature 4 ℃, PID temperature auto control, steam heating ,Spirax Sarco steam control system, JUMO temperature sensor, milk balance tank, milk pump, plate heat exchanger, pipes and valves, frame and support, electrical control box etcpcs1
    16B-2Buffer tankSUS304 stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digit thermometer, anti-eddy baffle, supported by adjustable feetSet1
    17B-3Centrifugal pumpSUS304 stainless steel, pump lift is 24 meters, mechanical sealSet1
    18B-4Blending tankSUS304 stainless steel, heat insulated, top off-center vertical agitator, conical head, airtight manhole, breather valve, digital thermometer, anti-eddy baffle, supported by adjustable feetSet3
    19B-5Centrifugal pumpSUS304 stainless steel, pump lift is 24 meters, mechanical sealSet1
    20B-6Ingredient adding tankSUS304 stainless steel,single layer, top off-center vertical agitator, digital thermometer,supported by adjustable feetSet1
    21B-7Measuring pumpSUS304 stainless steel, manual speed controlSet1
    22 Subtotal B
    23CYMIXING & FILLING UNIT
    24C-1Carbon and water
    Mixer
    SUS304 stainless steel, water +sugar syrup +CO2Set1
    25C-2Air conveyor for empty bottleincluding the air fans, primary stage, middle stage, and high effect filters.meter30
    26C-3RXGF 24-24-8including the high level tank, backflow tank, return pump, and bottle rising pumpset1
    27C-4Bottle warming machineSUS304,length 160Mset1
    28C-5Liner type cap sterilizerLiner typeset1
    29C-6Sterilizing liquid collecting and preparation system set1
    30C-7Cap loading machineAir-blowing typeset1
    31C-8Bottle dryer sset1
    32C-9Light checking machine set1
    33C-10Date coderVideojet VJ1510set1
