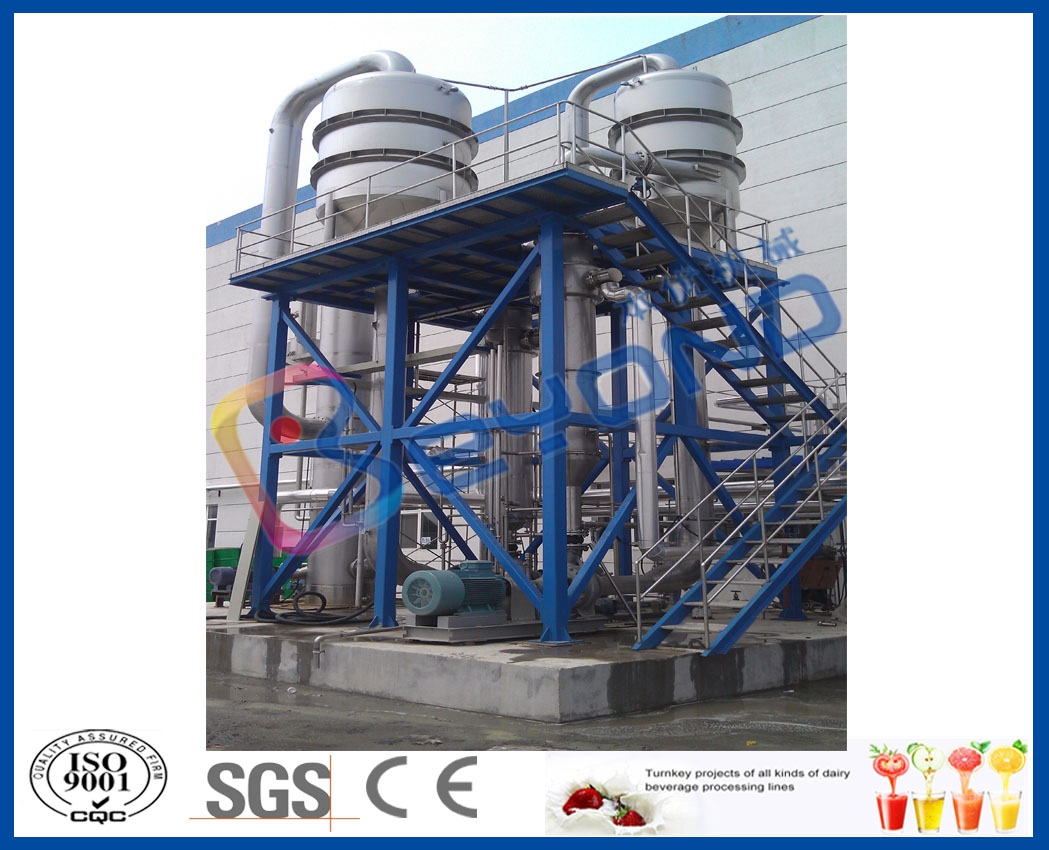

    SUS304 SUS316 Forced Circulation Evaporator / Multiple Effect Evaporator For Juice Industry

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : BY-EV
    Certification : CE certificate/ISO9001/SGS
    Price : negotiable
    Supply Ability : 5 unit per month
    Delivery Time : 90-110 days
    • Product Details
    • Company Profile

    SUS304 SUS316 Forced Circulation Evaporator / Multiple Effect Evaporator For Juice Industry

    Forced circulation evaporator multiple effect evaporator single effect evaporator


    modelBYQX-2-3BYQX-2-5BYQX-2-10BYQX-2-20BYQX-2-30
    water evaporation(KG/H)30005000100002000030000
    Steam consumption(T/H)1.2-1.652-2.754-5.58-1112-16.5
    Steam pressure(Mpa )0.4-0.8
    water evaporation/1 ton steam1.8- 2.5
    External size(LXWXH)M6.7X4.4X8.67.2X4.8X11.58.5X5.4X11.59.6X6X13.513X6.5X13.5

    Notes:

    1. “Y” for effect no, ”X” for evaporation capacity), above is for 2 effects.
    2. Effects and evaporation capacity designed to customer’s needs.

    Scope of application:

    Forced circulation type of single, double, three effect and multi-effect evaporator, suitable for high concentration, high viscosity, containing insoluble solids such as food, pharmaceutical, chemical, biological engineering, environmental engineering, waste recycling and other sectors of the low temperature concentration


    System composition:

    heater of each effect, the separator, condenser, circulating pump, pump between effects, vacuum pump and water drainage system, steam distribution cylinder, operation platform, electric instrument control cabinet and valves, piping system.


    1. Beautiful appearance, reasonable design of a full set of system, stable operation, high efficiency and

    energy saving, low steam consumption;


    2.Concentration ratio high, forced circulation type, make high viscosity liquid to easy flow for evaporation,

    short time of concentration;


    3.Special design through simple operation can be switched to change effect, in order to adapt to the

    production of different products;


    4.Low evaporation temperature, heat is fully utilized, the liquid material is heated gently, suitable for heat-

    sensitive materials concentration;


    5.Through forced circulation in evaporator, heating evenly in the pipe, high heat transfer coefficient, which

    can prevent the "dry wall" phenomenon


    6.Liquid be separated once again after enters the separator, strengthen the separation effect; make the

    whole device has a wide operating elasticity.


    7.The whole device has compact structure, small occupation area, simple structure and smooth, represent

    large sets of evaporation equipment development direction;


    8.Continuous feeding, feed liquid level and the required concentration can be controlled;


    9.Evaporation: according to the customer need to design.
