    SUS304 Small Scale Milk Pasteurization Equipment , PLC Touch Screen Dairy Tech Pasteurizer

    Shanghai Beyond Machinery Co., Ltd. is a professional machinery manufacturer based on technical developing. Combining with R&D, manufacturing, installation debugging and training, we are engaged in producing the liquid projects used in Dairy,Fruit &Vegetable juice,Beverage,Tea,Brewing,Flavoring,Pharmacy,Egg,Bone & Meat processing and Daily chemical products etc.

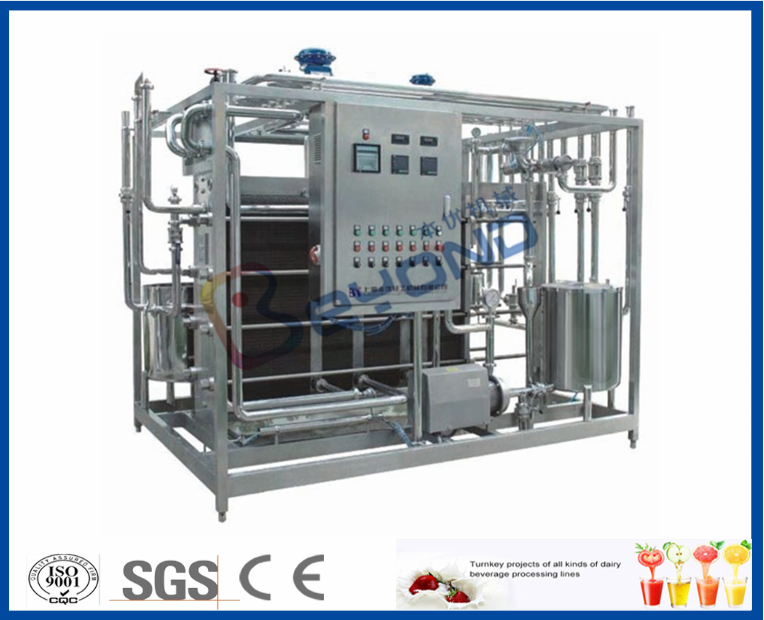

    Plate Pasteurization 3 Sections with PLC Touch Screen and PID Control


    Usage:

    This machine is used for heating, sterilizing, insulating and cooling for fresh milk, fruit juice, fruit beverage, alcohol etc. This unit is also used for pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream etc.) and also pre-sterilizing material when producing pasteurized milk (long shelf life milk).


    Structure:

    This unit can be connected with separator, homogenizer, flash evaporator & degasser etc.


    Control type:

    Full automatic control with PLC touch screen or semi-automatic control with PID control.


    Plate pasteurizer(3 sections):

    Application: This unit is used as Pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream etc.), and also pre-sterilize material when producing sterilized milk (long life milk).


    Features:

    This unit can be connected with separator, homogenizer, flash evaporator & degasser etc.


    This machine has features of high heat recovery efficiency, low energy cost, compact design on the construction and easy operation, simple maintenance.


    Process design and parameter

    Production capacity:500L-20000/H
    Technical Parameter:5℃→65℃(homogenization)→85℃(15S) →5℃
    Control type:Full-automatic control (PLC with touch screen), semi automatic.

    Equipment configuration

    A. plate heat exchanger;

    B. material-balance bucket;

    C. Hot water-balance drum;

    D. hot water pump;

    E. product pump;

    F. steam & water mixer;

    G. electricity box;

    H. stainless steel pipes and valves etc.

    I.PLC and color touch screen;


    Technical Parameter:

    ModelCapacity

    Heat exchane

    area (m²)

    Total power

    (kw)

    Steam consumption

    (kg/h)

    Dimension

    (L×W×H)mm

    Machine weight

    (kg)

    BR16-BS-0.50.555.2521200×1200×1500790
    BR16-BS-1185.2601500×1500×1800880
    BR16-BS-22 t/h1361041800×2000×1800980
    BR26-BS-33 t/h2061562000×2000×22001080
    BR26-BS-4-54-5 t/h30-4582602250×2000×22001250
    BR26-BS-6-86-8 t/h35-5084002250×2000×22001250
    BR26-BS-1010 t/h60115202800×2000×22001650
    BR35-BS-1515 t/h75117803000×2200×22002150
    BR35-BS-2020 t/h80119453300×2200×22002350

    Standard attachments:

    (1). Plate heat exchanger

    (2). Material balance bucket

    (3). Hot water balance drum

    (4). Hot water pump

    (5). Product pump

    (6). Steam & water mixer

    (7). Electricity box

    (8). Stainless steel pipes and valves etc.

    (9). PLC and color touch screen


    Features:

    This machine has features of high heat recovery lower energy cost, strict design on the construction and easy operation, simple maintenance.


    Technical parameters:

    5°C→65°C (homogenization)→85°C(15s)→5°C
