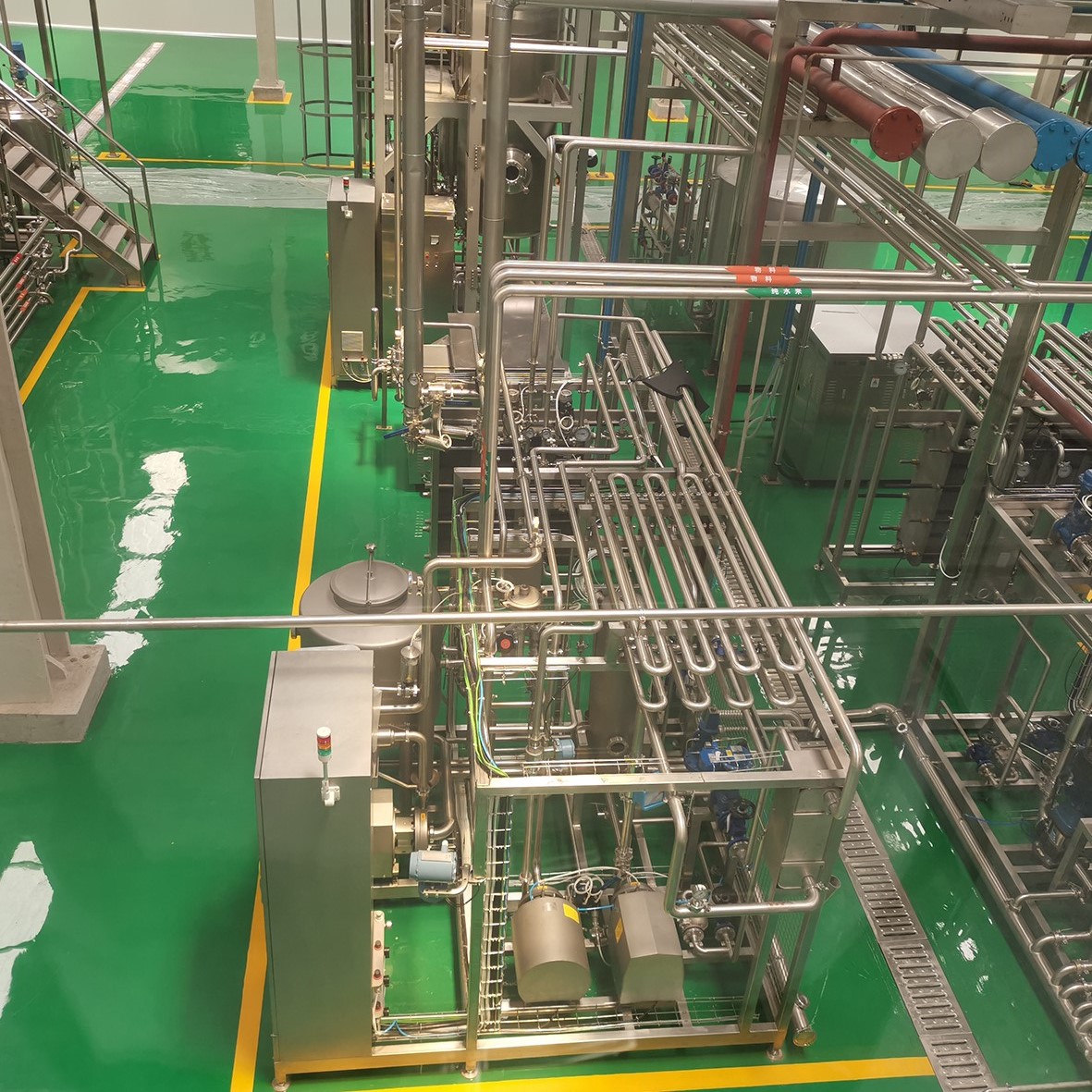

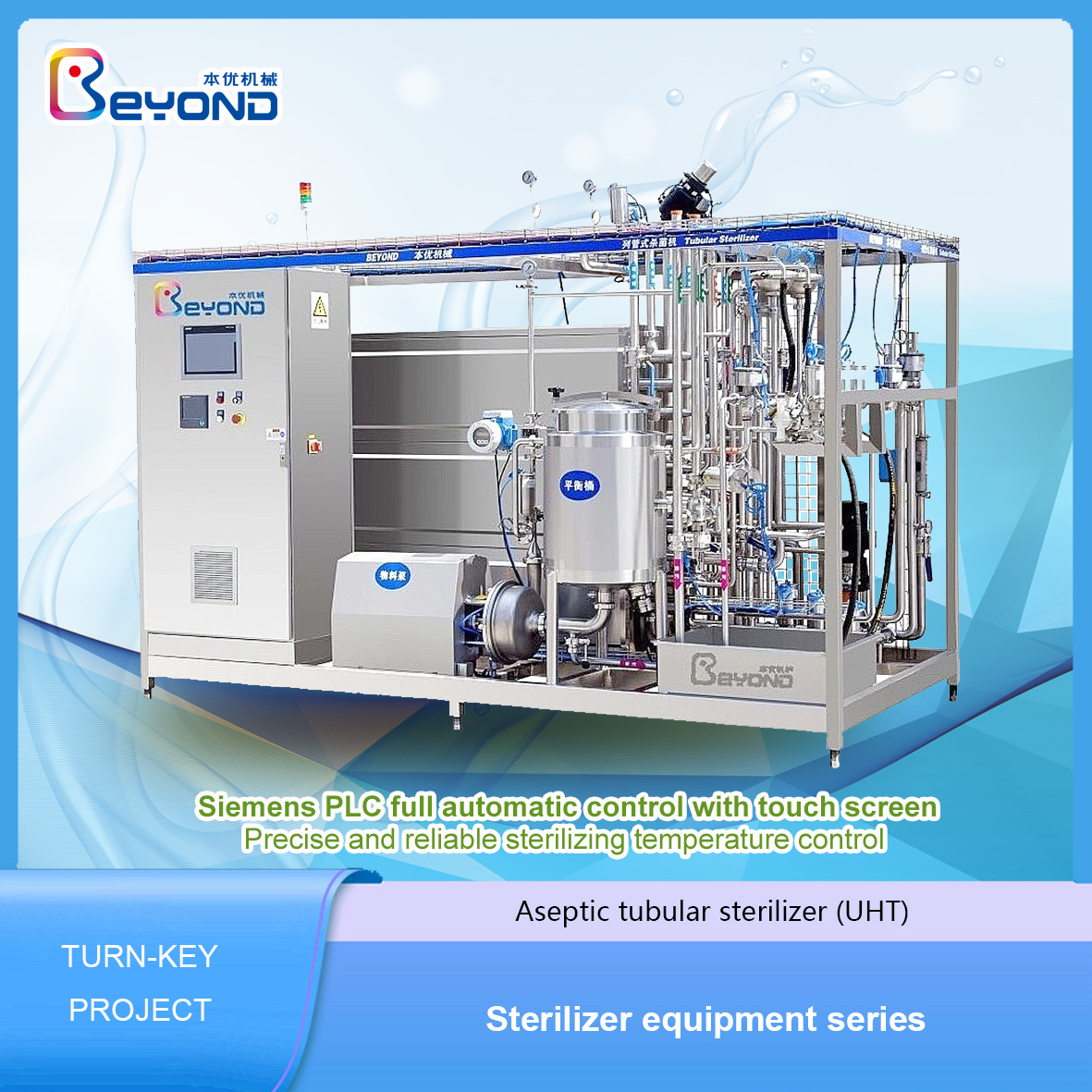

Tube in tube UHT sterilizer tube in tube sterilizer full-auto sterilizer

Application

This machine is used to perform continuous sterilization on much thicker products, such as various of concentrated juice,paste and similar high viscosity products.

Procedures technical:

25℃→95-121℃(120S-180S)→25℃-35℃, the final products can be filled in aseptic large bags for room temperature storage;

Characteristics

Compared to the other model, this machine has the following characteristics:

1. Temperature difference between the product and the heating medium is small, so the heating is even; the heating tubular adopts tube in tubes type and the surface of the tube is mirror polished to reduce the deposition on the surface which will longer the working life of the machine.
2. It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable.
3. It is precise and reliable in sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable;
4. The inner layer of the product tube adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
5. The system is strong safety, the fittings all adopts good performance and quality reliable materials,it is designed to value the safety of both operator and machine
6. The main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.
7. With self sterilize system;

Machine configuration

Full automatic control: Spirax Sarco reducer valve from UK, German Burkert & Spirax Sarco temperature control system, German Labom temperature transducer, Yuanan pipes and valves from shanghai , hot water pump from Italy, Siemens LOGO touch-screen and PLC full automatic control, the precision of temperature control is ±0.5 degree, with self CIP and SIP system

Technical parameter

Shanghai Beyond Machinery Co., Ltd, as a private business started in the year of 2005, is a specialized technology-oriented machinery manufacturing enterprise. Beyond specializes in the turn-key projects of the design, manufacture, installation and commissioning for the production lines of liquid food such as dairy, drink, ice cream, fruit and vegetable, bio-engineering, chemical and pharmaceutical.

Cooperated with several domestic and abroad Light Industrial or scientific research institutions, we absorb their advanced technology and then take base to develop new even better process techniques, we are now specializing in all kind of sanitary tank, pot, container, heater, cooler, sterilizer, concentrator, pump and other pipe and fittings.The equipments are in accordance with the relative standards of Juice, Dairy, Pharmacy, bio-chemical, such as HACCP, QS and GMP.

Through the years of the common efforts of our staff, we have obtained high share in the market of machinery industry, and have developed ourselves into a medium-sized enterprise of certain popularity in the industry. Combining scientific research, technical development, production, marketing and after-sale service, we keep ourselves acting strictly in accordance with the quality assurance system of ISO 9001.

Production range:

Processing Machinery For Various Fruits and Vegetables

Conveyor and elevator series

Washer and sorter series

Pulper and crusher series

Evaporator and deaerator series

Stainless steel tanks series

CIP cleaning series

Crate washing machine

Various Fruits and Vegetables Production Lines

Complete unit of citrus processing line, include orange, lemon, pomelo, grapefruit etc.

Complete unit of Chinese date/Jujube and hawkthorn processing line

Complete unit of sea-buckthorn processing line

Complete unit of peach / apricot and plum processing line

Complete unit of pineapple / mango and other tropical fruits processing line

Complete unit of tomato processing line

Complete unit of apple/pear processing line
