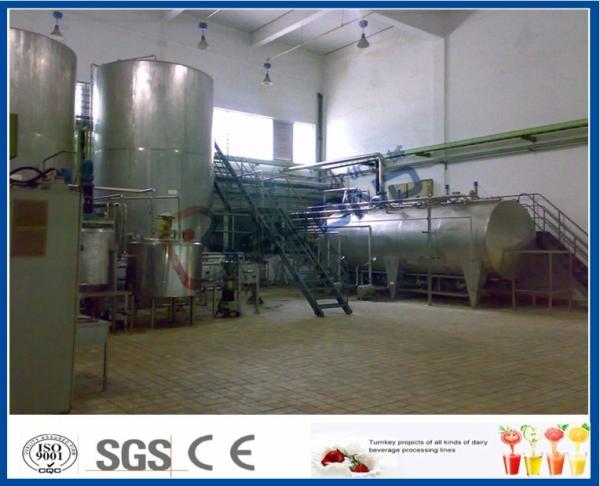

Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel

    Buy cheap Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel from wholesalers

    Buy cheap Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel from wholesalers
    • Buy cheap Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel from wholesalers
    • Buy cheap Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel from wholesalers
    • Buy cheap Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel from wholesalers
    • Buy cheap Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel from wholesalers
    • Buy cheap Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel from wholesalers

    Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel

    Ask Lasest Price
    Brand Name : BEYOND
    Model Number : BY-CIP
    Certification : ISO 9001/SGS/CE
    Price : USD 24100-USD82000
    Supply Ability : 60sets per year
    Delivery Time : 50-70working dyas
    • Product Details
    • Company Profile

    Cleaning In Place In Dairy Industry , Cip Cleaning Process Cip Pumps Stainless Steel

    3 tanks type CIP system split type full-auto CIP cleaning system


    The operating principle of the full auto CIP cleaning system refers that the tank body, pipelines, pumps and all valves and also the whole processing line are cleaned on line no need to disconnect the pipes or the equipments, all cleanings are done at the closed circuit.


    Configuration table

    ItemBrand or supplier
    ControllerSiemens PLC, color screen, full automatic control
    Conductivity meterGermany JUMO
    Flow switchGermany IFM
    Pneumatic valveGermany GEA
    Concentrated acid/alkali adding systemUSA sandipipe diaphragm pump
    Level alarmat high/low level
    Steam pressure reducer valveSpirax Sarco from UK
    Temperature regulating systemSpirax Sarco from UK
    Temperature sensorGermany JOMO
    Electromagnetic flow meterGermany E+H
    Frequency converterDanfoss
    Tank thicknessInner shell of CIP tank is 3mm;Outer cladding is 1.5mm
    PU insulation, heating by plate heat exchanger, separately standing tanks, material SUS304, in acid/alkali tank with vertical agitator, flow rate 10-20m³/h, pump head 24 meters, stainless steel control box.

    Main components list

    Itemparts
    CIP cleaning liquid storage tanksInclude acid tank, alkali tank, hot water tank, clear water tank
    Concentrated acid and alkalisingle layer storage tank for each
    PumpsCIP forward and return pumps
    Two diaphragm pumps for acid/alkali concentrate
    Heat exchangerPlate or tubular type
    Control cabinetOne electrical appliance box
    Pipes and valvesOne set of controlling pipe and valve component
    Electrical appliance materialOne set of auto-performance components and parts and the electrical appliance material.
    CIP cleaning liquid storage tank1000L-10000L.
    Cleaning recyclesSingle circuit, double circuits, three circuits ,four circuits or multi circuit operating at the same time; We can customized as to customers’ need
    Heating typePlate type, coil tube type, tubular type.

    This system adopts the PLC program to control, with the colored touch --screen to operate and display the whole process flow and also the each controlling parameter. The temperature of the cleaning liquid can be installed. It can set the PH value , the cleaning time, cleaning sequence , and also the PH value. With the system malfunction alarm device.


    The operating principle of the system:

    1. Auto-flow control for the cleaning solution

    2. Automatically regulate the temperature of the cleaning liquid.

    3. Auto-compensate for the inside tank liquid level.

    4. Automatically-compensation for the acid and alkali concentration.

    5. Auto transfer from one cleaning liquid to another.

    6. System auto alarm-device
