chocolate mixing tank :

1.Made of SUS304 stainless steel;

2.With PU as insulation;

3.Heated by hot water in jacket;

4.Temperature is fully automaticly controlled;

5.Volume: 75L-150L-2000L etc(according to customer requirements);

6.Can be used to melt chocolate;

7.With scraper on the agitator where contact with the inner shell,

the scraper can prevent the chocolate being sticked on the inner shell;

8.The top cover is removable, which make it easy to load the product;

9.With electrical control box to control the temperature and keep it at a certain degree.

Material: SUS304 stainless steel or SUS316L stainless steel,this is up to the requirements from customer.

This series storage tanks are designed according to sanitation requirements of food industry. It is made of imported and high quality stainless steel (SUS304, SUS316, and SUS316L etc.) Inside of tank adopt mechanical polishing, high-quality finish; cover, joint pipe and so on adopt circular act transition, no sanitation dead angle; with perlite(PU) as insulation which has good heat preservation effect, and whole foam.

We will install all kind attachments such as CIP cleaning ball, stirring paddle, aseptic air vent, and manhole as per requirements from customers

• technical capability

Maximum working pressure (inside tank): normal pressure

Maximum working temperature (inside tank):100℃

Maximum working pressure(jacket):0.09～0.4Mpa

(We can re-design according to actual demand.)

Maximum working temperature (jacket):100℃-140℃

Material 304 (conventional supply) or 316L (remark in advance)

Insulation (heat preservation) material perlite or PU

Volume 50L～20000L

Support mode leg-type support (conventional supply), skirt seat,

Saddle seat etc.

Adjust adjustable bolts of support leg to make tank body vertical and stable.

Storage tank with blender first should check the installation of drive machine if correct or firm. Then run the blender with hand, when it can run freely, then turn on the power.

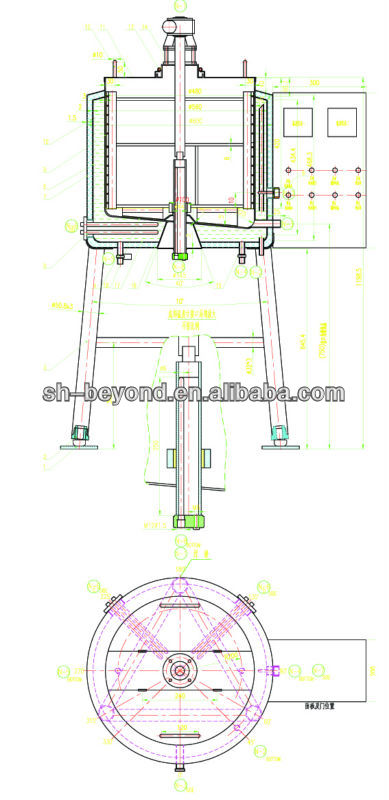

Rotate direction of blender should according to attached drawing.

Cleaning & use

Residue inside the tank is washed by clean water.

Heat up 1-1.5% sodium hydroxide to 85℃, and then circulate 15 min, last wash tank by clean water.

Heat up less than 1% sodium hydroxide to 80-85℃, after circulate 20 min, wash the tank by 90℃ clean water, and then cool the tank by aseptic normal temperature water or self-cool.

When working, first click button start power and power is on; if emergency happens, please click button emergency, and then cut off the power.

Start agitator manually, in order to ensure normal agitation and personal safety. The blender is connected with top cover. If you open the cover, the agitator will be forced stopping working. If go on working, please close the cover, and then re-click the button.

Hot water and material can be heat up and kept constant temperature separately. If heat up hot water to set value and keep for a period of time, please click three-position button---hot water. After power on, it will auto-control hot water temperature at a certain range according to set value.

The heat method of material is the same as hot water’s.

The supplement of hot water is processed in the heating process based on the hot water and material. Please point the start button on the electromagnetic valve if you need to add or instead water to the Jacket. At this time, you should feed water under the button at the hot water level until press the “stop” button. If you made the button at the “Material” level, please feed water according to the material temperature. Please open the feed water button if the material temperature higher than the upper limit of the setting temperature. Oppositely, please stop feeding water automatically.

Customer can self-configure and use it according to its capability and technical demand.
