    2000LPH set Yoghurt Procesing Equipment, yoghurt fermentation machine With Plastic cups package

    Ask Lasest Price
    Brand Name : BEYOND
    Model Number : BY-PM
    Certification : ISO 9001/SGS/CE/TUV
    Price : 100000USD-800000USD/set
    Payment Terms : T/T, L/C, west union
    Supply Ability : 20 sets per month
    Delivery Time : 60-100days upon the recipt of downpayment and confirmation of drawings
    • Product Details
    • Company Profile

    2000LPH set Yoghurt Procesing Equipment, yoghurt fermentation machine With Plastic cups package

    2000LPH set Yoghurt Procesing Equipment, yoghurt fermentation machine With Plastic cups package

    Equipment list sample of intergrated dairy production line


    Equipment list of intergrated dairy production line
    No.NameSizeMain parameter
    1Milk reception and storage unit
    2Milk acceptor300LSUS304, single layer, CIP spraying ball
    3Milk pump3T/HSUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    4Single piping filter3T/HSUS304, single pipe, stainless steal filter element of 100 mesh
    5Milk storage tank1000LSUS304, heat insulated, dimple pad jacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
    6Milk pump3T/HSUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    7Blending unit
    8Storage tank500LSUS304, heat insulated, dimple pad jacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
    9Milk pump3T/HSUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    10Single piping filter3T/HSUS304, single, stainless steal filter element of 100 mesh
    11Plate type exchanger1.5T/HSUS304, double pipes
    12High pressure homogenizer500L/H40MPa
    13Cream separator unit
    14Milk separator500L/HThe content of dried skim milk (%)<0.03,the speed of rotator is 8000rpm
    15Buffer container100LSUS304, with a cover, single layer
    16Buffer & cooling container100LSUS304, with a cover, single layer
    17Milk pump3T/HSUS304, with a cover, heat insulated, dimple pad jackets
    18Butter churner100LSUS304
    19Yogurt storage, ferment and filling unit
    20Temporary and ferment storage tanks500LSUS304, heat insulated, dimple pad jacket, vertical agitator, CIP spraying ball, breather valve, digital show thermometer, sampling point
    21Milk pump3T/HSUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    22Rotor pump1T/HSUS304, hard alloy mechanical seal, adjustment speed by manual
    23Plastic pouch filling machine
    24Plastic cup shaped filling machine
    25CIP system unit
    26Manual CIP system3×500LSUS304, single clening circulation, with CIP pump of connected tanks
    27CIP return pump10T/HSUS304, pump lift 24m, hard alloy mechanical seal, inner shell mirror polished
    28Power system unit
    29Cold water equipment7000 kcale per hour, air cooling refrigeration
    30Hot water boiler1000kg/h, outlet temperature is 90°C
    31Installation systemStainless steel piping system, power piping system, electric controlling box, electric installation material, installation and commissioning

    Company introduction:

    Shanghai Beyond Machinery Co., Ltd, established in the year of 2005, is a manufacture specialized technology-oriented machinery. BEYOND is able to provide the turn-key projects, including the design, manufacture, installation and commissioning for the production lines of liquid food such as dairy, drink, ice cream, fruit and vegetable, bio-engineering, chemical and pharmaceutical.

    Cooperated with several domestic and abroad Light Industrial or scientific research institutions, we absorb their advanced technology and then take base to develop new even better process techniques, we are now specializing in all kind of sanitary stainless steel tanks, heater, cooler, sterilizer, concentrator, pump and other pipe and fittings.


    Through the years of the common efforts of our staff, we have obtained high share in the market of machinery industry, and have developed ourselves into a medium-sized enterprise of certain popularity in the industry. Combining scientific research, technical development, production, marketing and after-sale service, we keep ourselves acting strictly in accordance with the quality assurance system of ISO 9001, to ensure us to provide the good quality equipments that are in accordance with the relative standards of Juice, Dairy, Pharmacy, bio-chemical, such as HACCP, QS and GMP etc.


    Thank you very much for the trust of all our customers and we expect to build up good business cooperation friendship with more and more clients, and warmly welcome to your visiting to our factory!


    Part 1. Basic technical parameters of this project

    1. Product Variety: 1000L/H dairy production line.

    2. Raw material: fresh milk with some milk powder;

    3. Filling type: plastic pouch,1000ml/pouch;

    4. End products:Pasteurized milk, yoghurt.


    Part 2. Main processing system:

    A:Milk receiving and storage system;

    B. Blending unit;

    C. Homegenize and sterilizing Unit;

    D. Yogurt fermentation unit;

    E. Filling Unit;

    F. CIP system;

    G. Installation Unit.

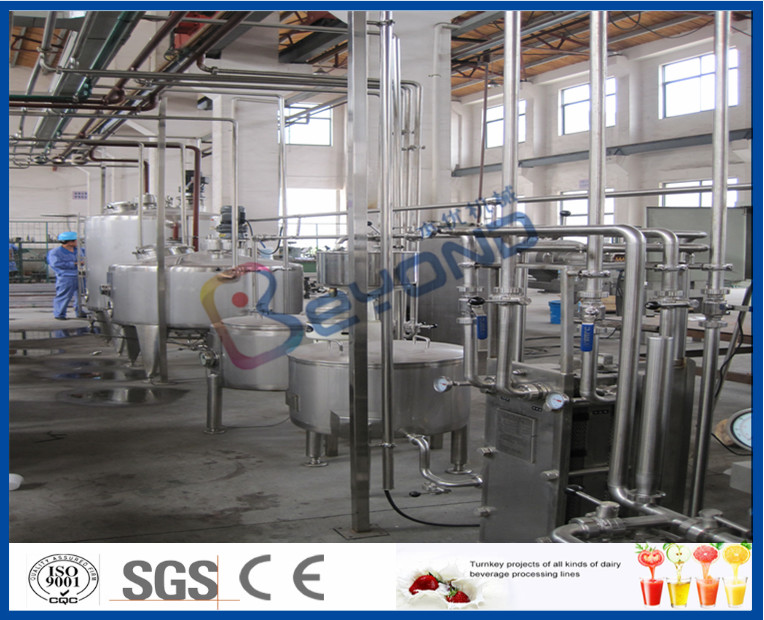

    Description of integrated dairy production line


    This small milk prodcessing line capacity is customized, it can produce several types of flavored pasteurized milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents, meanwhile with options to produce yogurt, cheese, cream and butter etc.


    This small milk processing line raw milk can be fresh milk or powder milk or both, this small milk production line milk normally stored at low temperature about 4-5 degree, which can maintain the nutrition at maximum.


    End product package of this small milk processing line can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box etc. For this dairy production line according to different end product and package type, the production technology is differently designed but commonly include the following steps.


    Commercial terms

    *Terms of Payment: 40% TT as down payment, the balance before loading,

    or 100%L/C at sight against shipping documents ;


    *Delivery time:

    120 days after receive TT deposit or formal 100% L/C, upon approval on technical drawings and specifications by client.


    *Duration of Guarantee:


    1. within 12 months since the installation and commissioning of equipment are finished, If the defects of equipment and spare parts result from the seller, the seller will supply spare parts and maintenance by free of charge. If the defects result from the buyer’s improper use of equipment, seller will charge the cost of maintenance and spare parts.


    2. After 12 months since the installation finished, if the equipment and spare parts are defected, the seller will charge the cost of maintenance and spare parts.


    3. If Buyer request Seller and engineer to Buyer's factory, buyer should supply seller’s workers the round trip air tickets and subsidary for each worker per day. And the local traffic, accommodation and lodging fees should also be available.


    *Installation terms:

    1. 50-60 days for installation and commissioning.


    2. BEYOND CO., provide installation, commissioning of all equipment supplied by BEYOND CO., as stated in the quotations.
