    Dairy Processing Cheese Maker Machine , Cheese Manufacturing Equipment

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : BY-MSLL
    Certification : ISO:9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : twenty units per year
    Delivery Time : 90-120 days
    • Product Details
    • Company Profile

    Dairy Processing Cheese Maker Machine , Cheese Manufacturing Equipment

    EC certificate 20TPD soft cheese machine, pizza cheese making machine, cheese vat with cream settling tanks


    Specific Description

    Dairy processing lines mainly use fresh cow or goat milk etc as raw material through different processing method, which can be manufactured into various food products.

    You can use cow milk, goat milk, camel milk and mare's milk etc as raw material, through clarification, cream separation, pasteurization, homogenization, degassing, fermentation, blending, UHT sterilization, filling etc flow procedure, and filling them into Pre-pak pouch, Brick-shape carton, Plastic bag, Gable top bag, plastic cup, plastic bottle etc containers, which can get various types of finished products like pasteurized milk, pure milk, yogurt, flavored milk, milk beverage, condensed milk, single cream, butter, milk slag, cheese etc, and their shelf life can be ranged from 2 day or even 2 years.

    DESCRIPTION

    Characteristics:

    Processing capacity can be ranged from 2T/Day to 1000T/Day.

    You can process cow(goat)milk etc into various liquid or non-liquid dairy products.

    High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in the dairy processing line.

    PLC control the whole production line, saving labor force and facilitate production management.

    Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.


    Technical parameters

    Raw materialFresh cow(goat)milk and milk powder
    End productVarious pure milk, yogurt, flavored milk, milk beverage, butter, cheese etc
    Capacity2T/D – 1000T/D
    End product packagePre-pak pouch, Brick-shape carton, Gable Top bag, plastic bottle, plastic cup, glass bottle etc

    20T/D Cheese Processing Line Equipments List

    NO.FLOW NO.NAMEMAIN TECHNOLOGY PARAMETERUNITQTYMANUFACTURER
    1AMILK COLECTIONSTORAGE UNIT
    2A-1self-priming pumpSUS304 stainless steel,pump lift 24M, Mechanical Sealset1BEYOND
    3A-2Twin piping filterSUS304 stainless steel,two pipe,Stainless Steel Filter Element 100 Meshset1BEYOND
    4A-3Rotational flow degasserSUS304 stainless steelset1BEYOND
    5A-4Flowmeter set1E+H
    6A-5Temporary storage tankSUS304 stainless steel,double-layer, 60mm PU insulation, eccentric vertical stirrer, sealing manhole, breath valve, CIP cleaning ball, material inlet & outlet, ladder, glass tube level, digital thermometer, sample valve, draw bar, adjustable legsset1BEYOND
    7A-6milk pumpSUS304 stainless steel, pump lift 24M, Mechanical Sealset1BEYOND
    8A-7Milk clarifierSUS304 stainless steel, two phases separatingset1CHINA
    9A-8plate coolerSUS304,△tm=15℃set1BEYOND
    10A-9milk storage tankSUS304 stainless steel,double-layer, 60mm PU insulation, side stirrer, sealing manhole, breath valve, CIP cleaning ball, material inlet & outlet, ladder, high & middle & low level, digital thermometer, sample valve, draw bar, adjustable legset2BEYOND
    11A-10milk pumpSUS304 stainless steel,pump lift 24M,Mechanical Sealset1BEYOND
    12RCIP return pumpSUS304 stainless steel,pump lift 24M,Mechanical Sealset2BEYOND
    14BHomogenizer and Sterilizer Unit
    15B-1plate pasteurizerFour section, 5℃ feeding material,75℃15S(yogurt sterilizing),outlet TEMP: 42℃set1BEYOND
    16B-2homogenizer25MPa,including starting boxset1CHINA
    18CCurd making unit

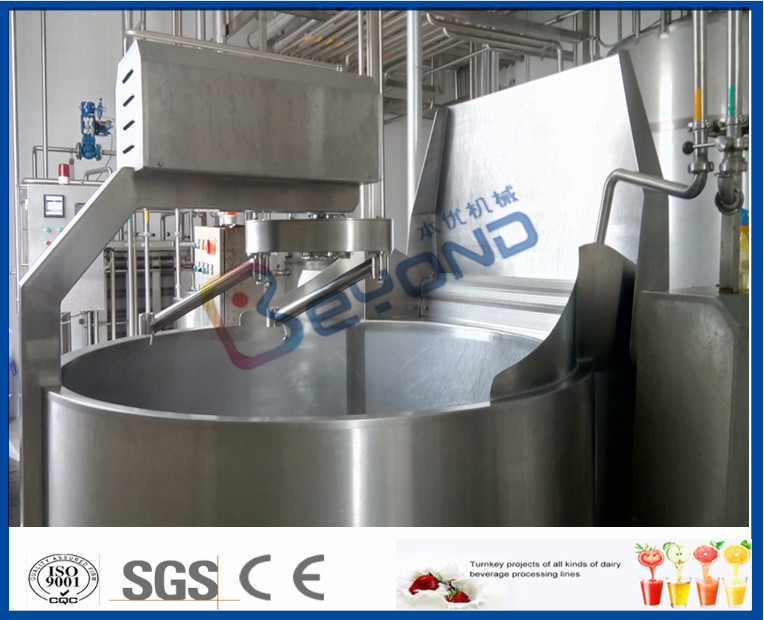

    19C-1Cheese vatSUS304 stainless steel, dimple jacket, ice water inlet&outlet, steam inlet&outlet, horizontal & upright slicerset4BEYOND
    20C-2Steam pressure reducing system1PCS DN40 Spirax sarco,20PCS DN25 shutoff valve, 6PCS DN20 drainage valveset1BEYOND
    22DPressing unit
    23D-1MouldSUS304set60BEYOND
    24D-2Cheese Pressing machineSUS304,6 head,cylinder formingset2BEYOND
    27EInstallation unit
    28E-1stainless piping systemstainless pipes and fittings for connection of all equipments from the seller's company; including CIP piping system and all product pipe line,SUS304 ,∅51,∅38set1BEYOND
    29E-2power piping systempower pipe line of all equipments from the seller's company;heat insulation excludedset1BEYOND
    30E-3electric controlling cabinetelectrical control of all equipments from the seller's companyset1BEYOND
    31E-4electric installation materialelectrical installation materials of all equipments from the seller's companyset1BEYOND
    32E-5installation and commissioning costthe buyer should pay the round-trip ticket of the supplier's installation and commisoning engineers and provide the accommodationset1BEYOND
