    5 - 200TPD Yogurt Manufacturing Equipment , Industrial Yogurt Production Yoghurt Making Machine

    Ask Lasest Price
    Brand Name : Shanghai Beyond
    Model Number : BYSNX
    Certification : ISO9001/CE/SGS
    Price : USD150000-200000/Set
    Supply Ability : 50sets/Year
    Delivery Time : 60-100 working days upon receipt of payment and confirmed the drawings
    • Product Details
    • Company Profile

    5 - 200TPD Yogurt Manufacturing Equipment , Industrial Yogurt Production Yoghurt Making Machine

    5 - 200TPD Yogurt Manufacturing Equipment , Industrial Yogurt Production Yoghurt Making Machine

    Please have a check of below technical specifications:

    FLOW NO.NAMEMAIN TECHNOLOGY PARAMETERUNITQTY
    AHot-water unit
    A-1Hot water tankSUS304,double layers, PU insulation, coil pipe heating, air-tight manhole, water inlet, digital thermometer, glass level, ladder, adjustable legsset1
    A-2Water PumpSUS304,pump lift 24M,machinical sealing, inner polishedset1
    A-3Temperature control systemWith temperature automatic control to control the whole systemset1
    BDissolving unit
    B-1Emulsifying tankStainless steel SUS304,square shape, double layers, with PU insulation, CIP cleaning ball, air-tight manhole, high speed shear -cut at the top,1400 rounds per minute, digital thermometer, adjustable legsset2
    B-2Milk PumpSUS304,pump lift 24M,machinical sealing, inner polishedset1
    B-3Double pipe filtersStainless steel SUS304,double pipe, stainless steel filter,100 meshset1
    B-4Operate platformStainless steel, SUS304, with handrails and laddersset1
    CMilk standardization unit
    C-1Blending tankSUS304,doubel layers, with off center vertical agitator, CIP cleaning ball, manhole, digital thermometer, glass tube gauge, simple valve, ladders, adjustable legs,set2
    C-2Milk pumpSUS304,pump lift 14M,mechanical
    sealing ,inner polished
    set1
    C-3Double pipe filtersStainless steel SUS304,double pipe, stainless steel filter,100 meshset1
    DHomogenize and pasteurizing unit

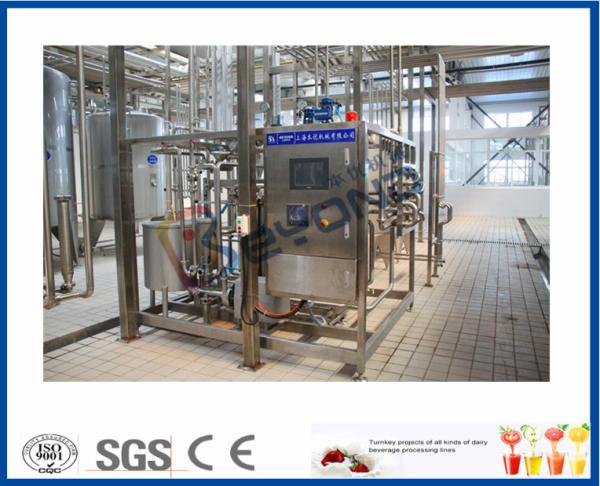

    D-1Plate pasteurizerStainless steel SUS304,30℃ inlet, temperature automatic control, pasteurize parameters:95℃, 300 seconds, 40-45℃ outletset1
    D-2HomogenizerWork pressure 25Mpa,inclduing the start cabinetset1
    D-3Holding tankSUS304, keep the temperature for 300sset1
    EFermentation unit

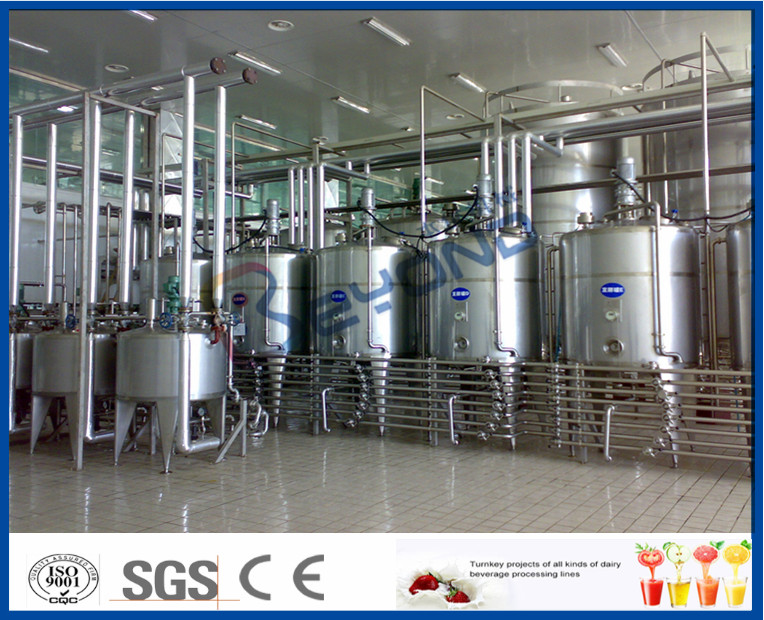

    E-1Fermentation tankStainless steel SUS304,three layers, dimple pad jacket, insulation with PU material, central agitator with double blend speed :15 round per minute and 30 round per minute inlet and outlet, CIP cleaning ball, breath valve, digital thermometer, air-tight manhole, sight glass, simple valve, adjustable legsset5
    E-2Rotor pumpStainless steel SUS304,food grade, with stepless speed adjustableset1
    E-3Plate coolerStainless steel SUS304,large gap, Tm=30℃,with stepless speed adjustableset1
    E-4Operate platformStainless steel,SUS201, with handrails and laddersset1
    FFilling unit
    F-1High level tankStainless steel SUS304,doubel layers, CIP cleaning ball, manhole,digital thermometer, simple valve, adjustable legs,set1
    F-2Plastic cup fillerCapacity: 4000pouch/h, filling volume: 250g/pouch, filling precision: ±1.5%set2
    GCIP unit
    G-1Semi-auto CIP systemSUS304, temperature is automatic controlled, consist of 3 tanks, double cleaning circuits, acid tank, alcali, hot water tank, 2000L each tank, double layer with PU insulation, coil pipe inside of tank for heating, with CIP forward pump, 20T/H, pump head is 24m, with acid/alkali concentrate adding systemset1
    G-2Return PumpSUS304,pump lift 24M,mechanical sealing, inner polishedset4




    Shanghai Beyond Machinery Co., Ltd. is a professional machinery manufacturer based on technical developing. Combining with R&D, manufacturing, installation debugging and training, we are engaged in producing the liquid projects used in Dairy,Fruit &Vegetable juice,Beverage,Tea,Brewing,Flavoring,Pharmacy,Egg,Bone & Meat processing and Daily chemical products etc.
    . We have cooperated with the same occupations from domestic and international to introduce and develop many advanced procedures of manufacturing and designing.
    Complete Fresh Industrial Yogurt Making Machine High Capacity

    Brief information:

    Brand Name:Shanghai Beyond
    Model Number:BY-YL
    Capacity5-200TPD
    Raw material

    Fresh cow milk, buffalo milk, goat milk, camel milk
    or milk powder, or both mixed

    End productSet yoghurt, stirred yoghurt, Lassie, Yakult
    Shelf life20-25days
    Final product fat (%)

    double toned milk (1.5%);
    Full cream(3% or 6%); Semi-skimmed

    SNF8.5%(min)
    Main material for machinesSUS304 or SUS316
    Package for end productplastic bag
    Certification:ISO9001/CE/SGS
    Place of Origin:China
    Manufacturer historyMore than 10years


    BENEFIT
    1.Opportunity to realize products with customized recipes.
    2.Opportunity to produce more than one product with the same processing line.
    3.Accurate dosing of mixing and additional fruit and aromas.
    4.High quality of the final product keeping an elevated nutritional value.
    5.Wide customization of the final product.
    6.Maximum yield, minimum production waste.
    7.Highest energy savings thanks to the most advanced technologies.
    8.Complete line supervision system through monitoring of every process phase.
    9.Recording, visualization and printing of all daily production data.

    CONSTRUCTIONFEATURES
    Workingcapacity from 5 tons/d up to 100 tons/d
    Products - Stirredyogurt
    - Stirred yogurt with fruit puree or flavor
    - Yogurt with cereals, fibre
    - Setyogurt
    - Drinkingyogurt
    - Frozenyogurt
    - Concentrated yogurt
    - Kefir
    - Package in cup, gable top carton, bottle
