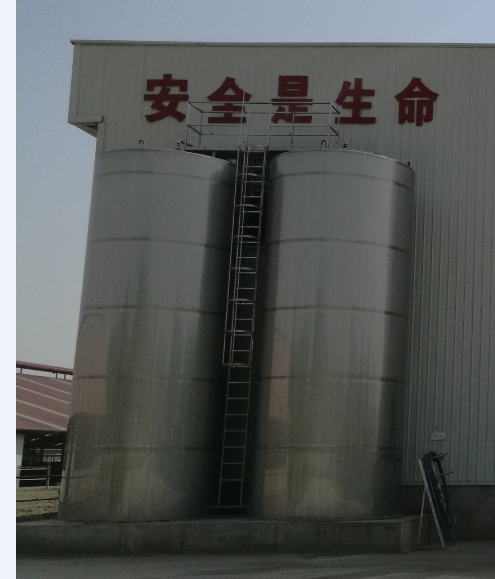

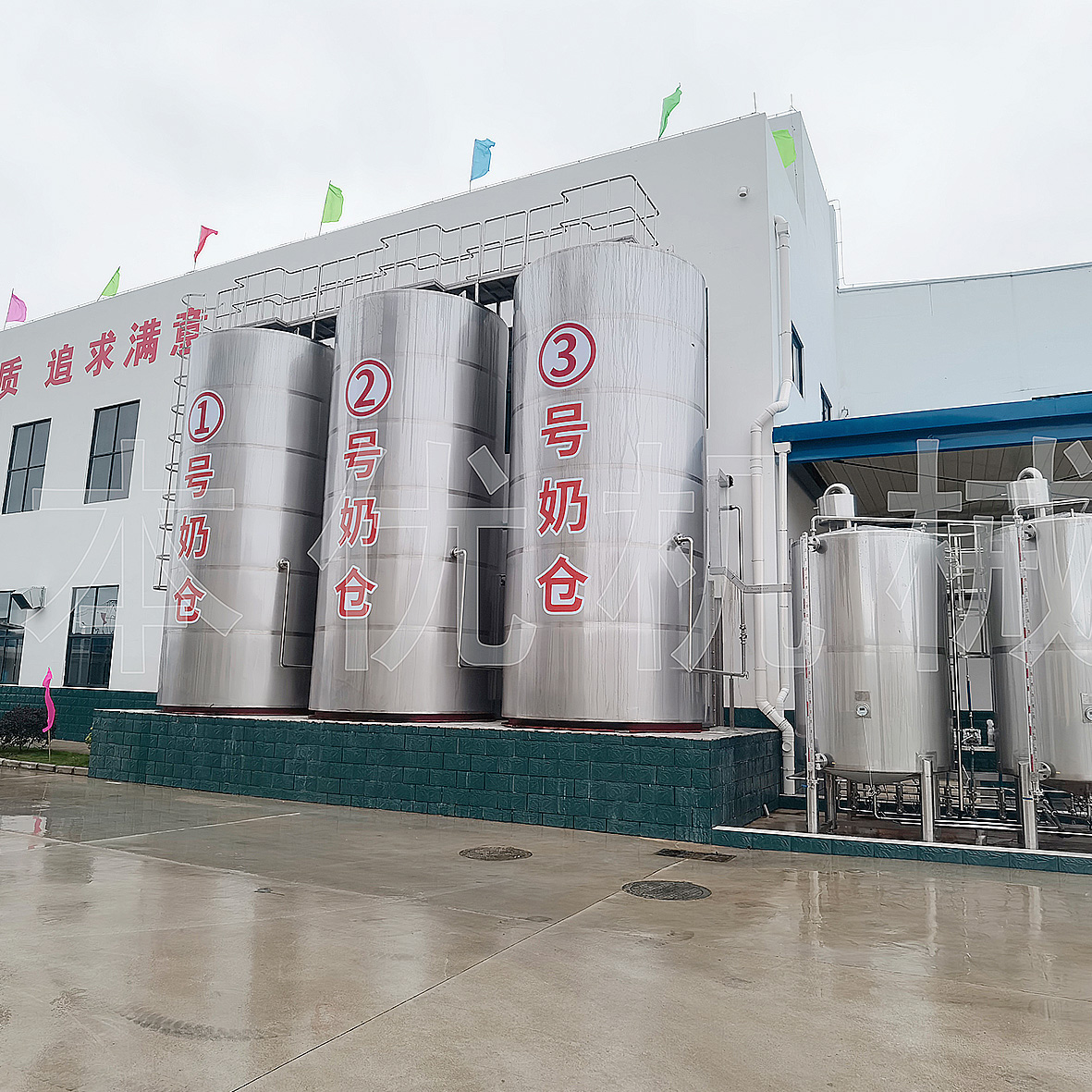

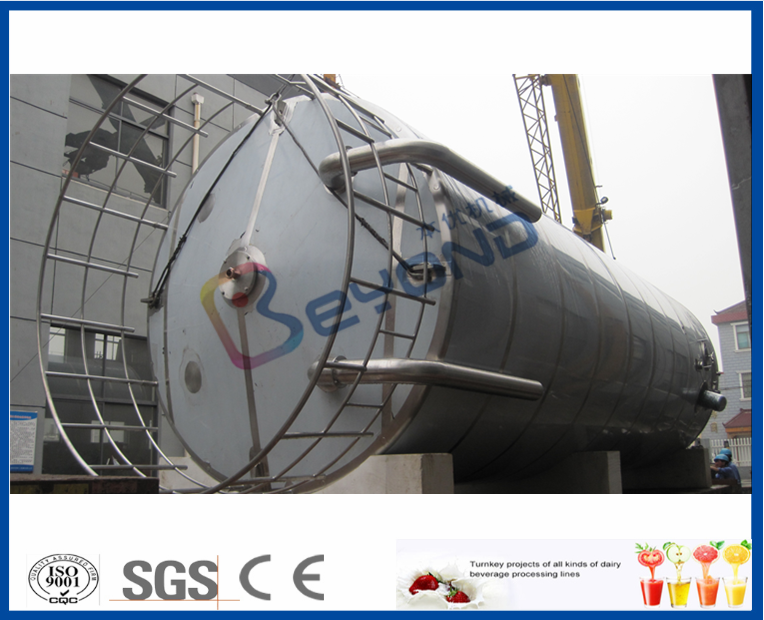

20000L Large Outdoor SUS304 Milk Storage tank /Milk Silo With agitator 960rpm

Usage: Applicable for large milk collection center, or for milk outdoor storage at large milk production plant; also used at other food and pharmacy factory for storage of liquid product.

This equipment is equipped with cleaning system, agitator, sight and view devices, also have attachments of thermometer and level indication meter.

Specifications:

★Material: all material used is high quality sus304-2B stainless steel or SUS 316, inner shell δ=3-4mm and out shell δ=2mm and cooling jacket δ=1.5mm;

★Structure: cylindrical shape, conical top cover of 15 degree, with skirt base; with PU(Polyurethane) as heat insulation; with cooling dimple pad at tank wall and base.

★Volume range: 15,000L-120,000L

★ Standard configuration:

a). One air tight side manhole;

b). One side mounted agitator at the bottom;

c). One PT100 thermometer, temperature range 0~100℃;

d). Two CIP cleaning balls;

e). One aseptic sample valve;

f). Anti butterfly and dirt air vent;

g). Product inlet/outlet;

h). Cooling medium inlet/outlet;

i). Level sensor;

j). Ladder with circle protection and protection fence at tank top

Technical parameter:

Other volumes not specified, we could customize as to customers’ requirement.

And we will recommend manufacturing on site for the volumes that more than 120T.

Company Description:

Shanghai beyond machinery co., ltd is specialized in supplying various kinds of milk processing line, including the pasteurized milk, UHT milk, flavored milk, yoghurt, cheese and butter, cream, condensed milk etc.

Shanghai Beyond can supply complete turnkey projects for customers, integrating with designing, equipment manufacturing, to installation and commissioning and also training the operators.

Pasteurized milk process: milk transporting, milk filtering and collection; cooling and storaging, cream separation, pasteurization, homogenization, degassing, and filling.

Commericial terms

Shanghai Beyond Machinery Co., Ltd, as a private business started in the year of 2005, is a specialized technology-oriented machinery manufacturing enterprise. Beyond specializes in the turn-key projects of the design, manufacture, installation and commissioning for the production lines of liquid food such as dairy, drink, ice cream, fruit and vegetable, bio-engineering, chemical and pharmaceutical.

Cooperated with several domestic and abroad Light Industrial or scientific research institutions, we absorb their advanced technology and then take base to develop new even better process techniques, we are now specializing in all kind of sanitary tank, pot, container, heater, cooler, sterilizer, concentrator, pump and other pipe and fittings.The equipments are in accordance with the relative standards of Juice, Dairy, Pharmacy, bio-chemical, such as HACCP, QS and GMP.

Through the years of the common efforts of our staff, we have obtained high share in the market of machinery industry, and have developed ourselves into a medium-sized enterprise of certain popularity in the industry. Combining scientific research, technical development, production, marketing and after-sale service, we keep ourselves acting strictly in accordance with the quality assurance system of ISO 9001.

Production range:

Processing Machinery For Various Fruits and Vegetables

Conveyor and elevator series

Washer and sorter series

Pulper and crusher series

Evaporator and deaerator series

Stainless steel tanks series

CIP cleaning series

Crate washing machine

Various Fruits and Vegetables Production Lines

Complete unit of citrus processing line, include orange, lemon, pomelo, grapefruit etc.

Complete unit of Chinese date/Jujube and hawkthorn processing line

Complete unit of sea-buckthorn processing line

Complete unit of peach / apricot and plum processing line

Complete unit of pineapple / mango and other tropical fruits processing line

Complete unit of tomato processing line

Complete unit of apple/pear processing line
