    Oxidation Fermentation Stainless Steel Automatic Rotating Drum Bioreactor

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : 10L-10000L
    Certification : ISO9001
    Payment Terms : L/C, T/T
    Supply Ability : 150 sets per year
    Delivery Time : 60 days after payment
    • Product Details
    • Company Profile

    Oxidation Fermentation Stainless Steel Automatic Rotating Drum Bioreactor


    Factory Customized Oxidation fermentation stainless steel automatic Bioreactor

    • Main technical parameters:
    Coefficient of charge70-75%
    Ventilation ratio1-2vvm
    Height-diameter ratio2-2.5
    Tank series10L;20L;30L;50L;100L;1-200m3;Customized volume available
    Cultivation medium sterilizing typeActual sterilization;continuous sterilization;UHT continuous sterilization,etc.
    Culture typesfungus;bacterium,actinomyces
    Culture expanding typessingle tank fermentation;multi-stage fermentation;disk-type fermentation
    Heat exchange typesFull jacket;dimple jacket;semicircle-pipe jacket;inner coil,inner turbulation
    Stirring typesturbine stirring,wide blade stirring;paddle stirring;deflector stirring,ect

    Process types
    Microbial fermentation,antibiotic fermentation,nucleic acid fermentation,enzyme fermentation,yeast fermentation,starter fermentation.

    Fermentation types
    Oxidation fermentation,facultative fermentation,anaerobic fermentation.

    Material types
    Liquid state fermentation,semi-liquid state fermentation,solid fermentation.

    Coefficient of charge
    70~75%

    Ventilation ratio
    1~2vvm

    Height-diameter ratio
    2~2.5

    Culture medium sterilizing type
    Actual sterilization,continuous sterilization,UHT continuous sterilization,etc.

    Culture types
    fungus,bacterium,actinomyces.

    Culture expanding types
    Single tank fermentation;multi-stage fermentation,disk-type fermentation.


    Tank series
    10L,20L,30L,50L,100L,200L,300L,500L,1m³,2m³,3m³,5m³,10m³,20m³,30m³,50m³,80m³,100m³,customized.


    • Fermentation tank structure features:

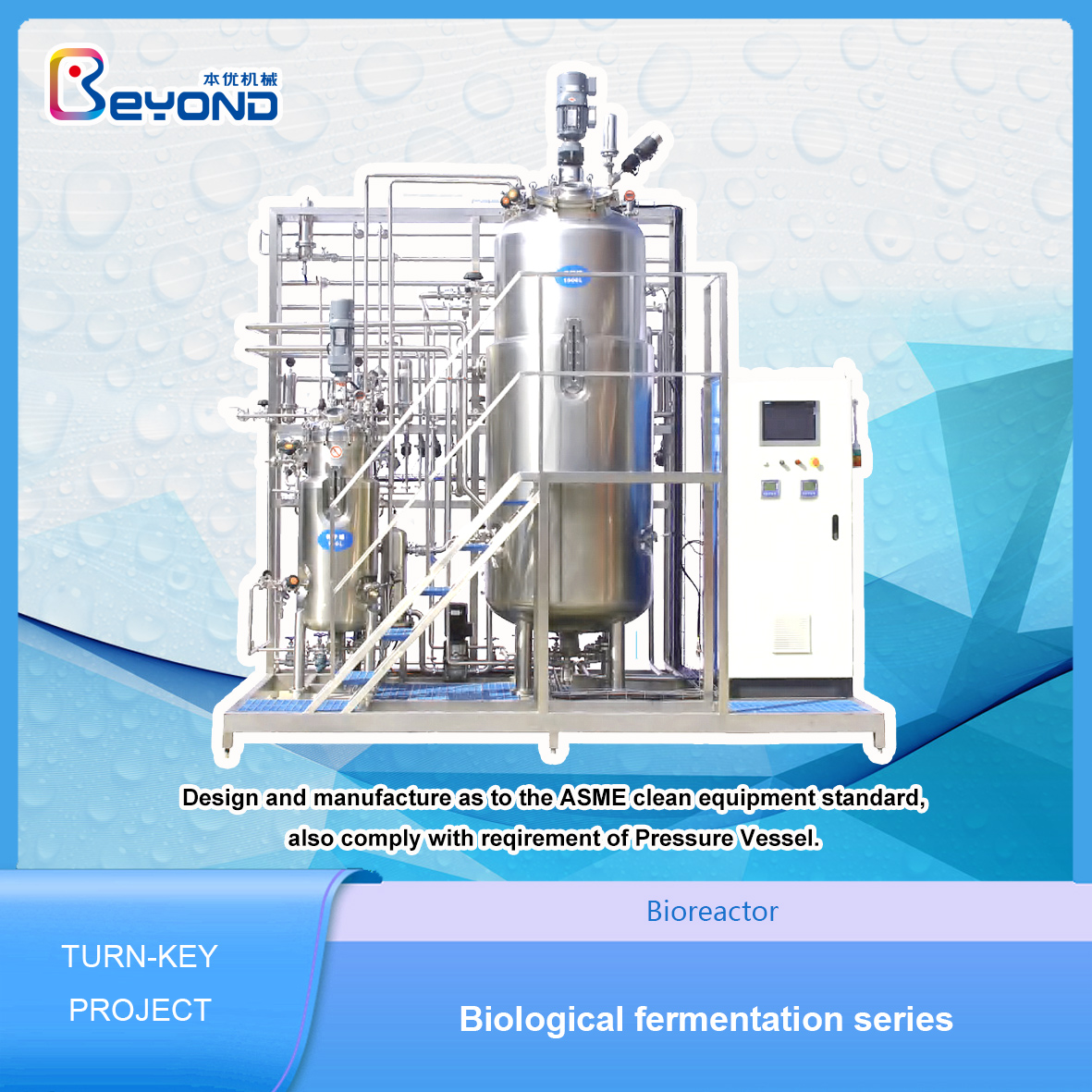

    (1) Design standard:Based on the ASME clean equipment standard to design and manufacture;complying with the requirements of Pressure Vessel at the same time;

    (2)Inner surface treatment
    Mechanical polishing Ra
    0.4μm,and then performing the mirror process;

    (3)Outer surface treatment

    Mechanical polishing Ra0.6μm,and then performing the matting process;

    (4)No blind coner treatment
    The inner welding line and the inner surface being polished,and structure components adopting the full length welding,and then polishing,inner coil pipe using the stress eliminating structure;


    (5)Fastener structure
    All fasteners using the bolt stud balancing double acorn nuts,PTFE materia as gasket seal;

    (6)Mechanical seal
    Using the washable,sterilized collection plate equipped mechanical seal fixed and moving ring friction sleeve to ensure the friction debris not falling into the tank;
    sealed pattern:dry or wet type,single end face or dual end face;

    (7)Heat exchange type
    Full Jacket,dimple jacket,semicircle-pipe jacket,inner coil,inner tubulation;


    • Piping system features:

    (1) Processing piping
    Adopting ASME sanitary grade internal and external polished cleanig pipe.It is weld automatically with argon gas,inspected by endoscope.

    (2)Valves
    The valves connected with tanks all adopting double membrane combination
    diaphragm valve;all steam and compressed air valve are both using stop valves and sanitary ball valves.

    (3)Double membrane diaphragm type tank bottom valve ,sterilizing at the product outlet before sampling;

    (4)Online sterilization
    Adopting the clean and saturated steam filtered by
    0.5
    μm titanium rod filter;


    (5)Sampling method
    Adopting the diaphragm type aseptic sampling valve,doing online sterilization before sampling and take aseptic sample;

    (6)Subcultivation
    The pipe can be sterilized during the whole progress,installing the thermometer to sterilization detection;

    (7)Inoculation method
    Flame ring type,different pressure type;

    (8)Feeding mode
    Peristaltic pump,measuring cup,etc.

    (9)Multi-stage culture expanding system subcultivation
    Subcultivation distributor to do the multitubes distribution subcultivation valve manifolds subcultivation,etc.
