    Aseptic Complete High Moisture Soft Cheese Production Line

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : BY-MSLL
    Certification : ISO:9001
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : twenty units per year
    Delivery Time : 90-120 days
    • Product Details
    • Company Profile

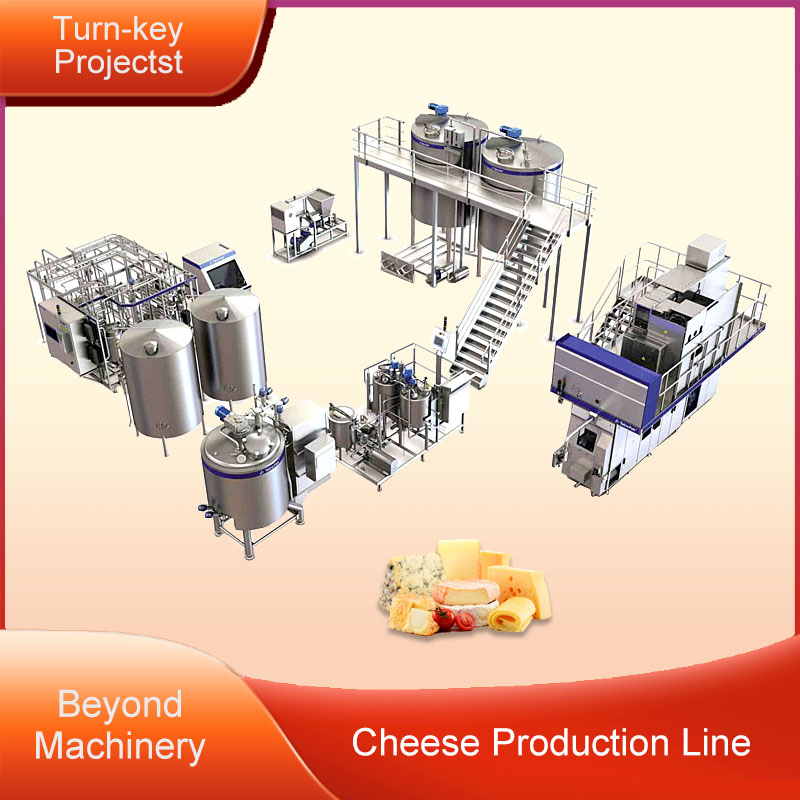

    Aseptic Complete High Moisture Soft Cheese Production Line

    Complete cheese production line cheese making vat cheese processing plant



    High moisture soft cheese production line
    According to the best solution of producing high moisture soft curd cheese, a specific cheese making equipment was put forward.
    The main machines constituting the cheese making equipment of the production line are:


    Cheese jar
    The cheese making equipment is a semi-circular cross-section closed solidification cylinder, which is cleaned under the CIP device. The barrel is equipped with parallel moving tools and longitudinal tools made of stainless steel blades.


    Whey curd conveying device
    The cheese making equipment unit consists of two modular tanks, which are processed in the alternating stages of vacuum and pressurized sterile air


    Block mold filling system
    The curd whey mixture is fed into a mold lock by a symmetrical collector
    "Drip" drainage system with perforated bucket and filling the mold with curd
    The curd whey mixture is fed into a perforated bucket for whey pre filtration and then into a block mold.


    Curing system

    You can process cow(goat)milk etc into various liquid or non-liquid dairy products.

    High standard design, manufacture and project installation requirements, which guarantee the first-class finish products in the dairy processing line.

    PLC control the whole production line, saving labor force and facilitate production management.

    Full-auto CIP cleaning, to ensure whole production line equipments meet food sanitary safety requirements.


    ADVANTAGES AND STRONG POINTS


    Technical parameters

    Raw materialFresh cow(goat)milk and milk powder
    End productVarious pure milk, yogurt, flavored milk, milk beverage, butter, cheese etc
    Capacity2T/D – 1000T/D
    End product packagePre-pak pouch, Brick-shape carton, Gable Top bag, plastic bottle, plastic cup, glass bottle etc

    Equipment list of 20000L/D Butter & Cheese Processing Line


    NO.FLOW NO.NAMESIZEMAIN TECHNOLOGY PARAMETERUNITQTY
    1AMILK RECEIVE AND STORAGE UNIT
    2A-1electronic scale maximum weighing 1000KGpcs1
    3A-2milk weighing tankV=300Lmade of SUS304 stainless steal,single layer,product feeded in through 40 mesh filter net,CIP cleaning ballpcs1
    4A-3milk acceptorV=500LSUS304 stainless steel,single layer,CIP cleaning ballpcs1
    5A-4milk pumpQ=10T/hSUS304 stainless steel,pump lift 24M,mechanical sealpcs1
    6A-5twin piping filterQ=10T/hSUS304 stainless steel,two pipe,Stainless Steal Filter 100 Meshpcs1
    7A-6Plate coolerQ=10T/hSUS304 stainless steel,one stage,ice water cooling, 20-4℃pcs1
    8A-7Milk storage tank10000LSUS304 stainless steel, heat insulated,dimple jacket,off-center vertical agitator, conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feetpcs2
    9A-8Milk storage tank5000LSUS304 stainless steel, heat insulated,dimple jacket,off-center vertical agitator, conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feetpcs2
    10A-9milk pumpQ=10T/hSUS304 stainless steel,pump lift 24M,mechanical sealpcs2
    11 subtotal:
    12BBLENDING/HOMOGENIZER/PASTEURIZE UNIT
    13B-1plate type pasteurizer5T/hSUS304 stainless steel, plate type, inlet temperature 4℃, pasteurizing temperature 85℃, holding tube 15S for milk ,outlet temperature 4/40℃, PID temperature auto control,include Spirax Sarco steam control system,milk balance tank, milk pump, plate heat exchanger, pipes and valves, frame and support, electrical control box etcpcs1
    14B-2Cream separator5T/hDisk separator, automatic control, three-phase, started with frequency conversion, self-dischargingpcs1
    15 subtotal
    16CBUTTER UNIT
    17C-1Cream buffer tank2000LMaterial-touch is SUS304 stainless steel, insulation, top off-center vertical agitator, conical head, airtight manhole, breathing valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feetPCS1
    18C-2Milk pump5T/HMaterial-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical sealPCS1
    19C-3plate type pasteurizer1T/hSUS304 stainless steel, plate type, inlet temperature 4℃, pasteurizing temperature 85℃, holding tube 15S ,outlet temperature 4/40℃, PID temperature auto control,include Spirax Sarco steam control system,milk balance tank, milk pump, plate heat exchanger, pipes and valves, frame and support, electrical control box etcpcs1
    20C-4Cream storage tank1000LMaterial-touch is SUS304 stainless steel, insulation,dimple jacket, frame vertical agitator, conical head, airtight manhole, breathing valve, digital readout thermometer, anti-eddy baffle, supporters with adjustable feetPCS2
    21C-5Milk pump5T/HMaterial-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical sealPCS1
    22C-6Butter Churner1000LSUS304,stainless steel power distribution cabinet,Frequency control of motor speed, spray cooling, with transparent protective coverPCS1
    23C-7Butter melting vat1000LMaterial-touch is SUS304 stainless steel, insulated, miller jacket, coil pipe indide equipped, open cover, supporters with adjustable feetPCS1
    24C-8Milk pump5T/HMaterial-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical sealPCS1
    25C-9Ghee boiler500LMaterial-touch is SUS304 stainless steel, insulated, miller jacket, top vertical mixing, ball shape seal head, airtight manhole, breathing valve, digital display thermometer, anti-eddy baffle, supporters with adjustable feetPCS2
    26C-10Milk pump5T/HMaterial-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical sealPCS1
    27C-11separator0.5T/hDisk separator, automatic control, two-phase, started with frequency conversion, self-dischargingpcs1
    28C-12Ghee storage tank1000LMaterial-touch is SUS304 stainless steel, insulation, conical head, airtight manhole, breathing valve, digital display thermometer, anti-eddy baffle, supporters with adjustable feetPCS1
    29C-13Milk pump5T/HMaterial-touch is SUS304 stainless steel, pump lift is 24 meters, mechanical sealPCS1
    30C-14butter packing machine  pcs1
    31C-15Ghee filler  pcs1
    32 subtotal:
    33DButter & Cheese unit
    34D-1Cheese vat5000LSUS304, honeycomb jacket for heating or cooling, with agitator, temperature sensor, can be tilted horizontally, water drainage, residue discharge outletPCS1
    35D-2Cheese milling machine500KG/HSUS304set1
    36D-3Cheese presser500KG/HSUS304, pneumatic pressset1
    37 Moulds SUS304, 20KG/pieceset50
    38D-4Cheese remaker500KG/HSUS304PCS1
    39D-5Cheese cutting machine500KG/HSUS304PCS1
    40D-6Cheese vat2000LSUS304; Turning type, easy for pouring out cheese; With cutting knives, made of acid-resistant steel. Mechanical agitator, of sanitary construction. Automatic whey draining, automatic turning over. With a system of heating curd with hot water,With a system spreading of process water onto the entire surface. Dynamic temperature adjustment and measurement.CIP cleaning/disinfection, automatic controlPCS1
    41D-7Acidification tank500LSUS304 stainless steel, each set with stainless steel sieve for draining whey, with wheels, for cutting the big block to small blocks, connect with whey collection tank, valves and pumpsset2

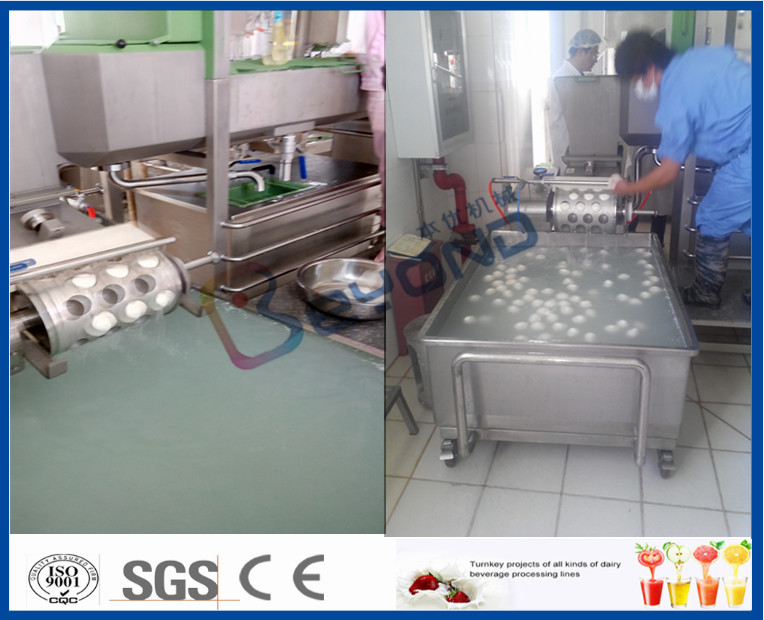

    42D-8Cuttingcookingstretchingmoulding system200KG/Helevator with feed funnel, automatic control, cutting curdcookingstretchingmoulding,
    Capacity: 100-200kg/h, Include : cutting curdcookingstretchingmoulding, stretching speed adjustable, hot water generating and recirculation system, moulds size: 2.5kg per pipece, also include valves, filter, pump and piping for water rout
    pcs1
    43D-9Cooling vat1200Lmaterial SUS316L, single layer vessel, with wheels, Drain valve, overflow pipepcs1
    44D-10Brining vat1000Lmaterial SUS316L, single layer vessel, with wheels, Drain valve, overflow pipepcs1
    45D-11Vacuum packing machine for cheese500KG/HSUS304,auto vacuuming,and sealing,Capacity: 500kg/d,Size :250g,150g,10kg,17kgpcs1
    46 subtotal:
    47EWHEY PROCESSING UNIT
    48E-1Whey storage tank10000LSUS304 stainless steel, heat insulated,off-center vertical agitator, conical head,airtight manhole, breather valve,digital readout thermometer,anti-eddy baffle,supporters with adjustable feetpcs2
    49E-2milk pumpQ=10T/hSUS304 stainless steel,pump lift 24M,mechanical sealpcs1
    50E-3milk pumpQ=10T/hSUS304 stainless steel,pump lift 24M,mechanical sealpcs1
    51 subtotal:
    52FCIP UNIT
    53FCIP system3*2000LThree tanks, single circulation, Semi-auto CIP, double layers insulation tank, tank material SUS304 stainless steel, plate heater, acid&alkali tank with stirrer, high&Low liquid level alarm system, Spirax Sarco temperature auto control, JUMO temperature sensor, Shanghai YUAN brand progress pump 1 pieces, 20T/H, pumping lift 36M,200L concentrated acid & alkali tank which material is SUS316L , The USA imported pneumatic diaphragm pump two pieces.pcs1
    54Rreturn pumpQ=20T/hSUS316L stainless steel, pump lift 24M,Mechanical Sealpcs3
