    NFC Processing Fruit Juice Production Line 72 Brix

    Ask Lasest Price
    Brand Name : Shanghai Beyond
    Model Number : BY-AL
    Certification : ISO9001/CE/SGS
    Price : Negotiation
    Supply Ability : 50 Sets Per Season
    Delivery Time : 50-100 working days upon receipt of payment and confirmed the drawings
    • Product Details
    • Company Profile

    NFC Processing Fruit Juice Production Line 72 Brix

    Fruit Juice Production Line|Fruit Juice Processing Line|Fruit Juice Making Line


    Heat treatment line
    Fruit juices and / or finished beverages can be subjected to appropriate heat treatment as a chemical, physical and microbial stability treatment. Pasteurization includes the microbial stabilization of products through special heat treatment. Proper pasteurization can ensure the shelf life of the product.
    The microbial content in fruit drinks depends on the raw materials. The main contaminating microorganisms of these strains are yeast, mold and sometimes bacteria. When the pH value is lower than 4.5, spores rarely grow in fruit juice and soft drinks.
    Pasteurization line can be flat plate type, free flow flat plate type or tubular.
    UHT treatment can also be:
    Aseptic filling ultra-high temperature treatment
    preservative
    Hot filling
    According to the heat treatment, it can be predicted that:
    Deaeration: it represents the removal of oxygen and is responsible for destroying oxidation. As for fruit juice, deoxidization can improve the taste, appearance and product shelf life: deoxidization can prevent the degradation of vitamin C, improve the filling process and prolong the shelf life of products.
    Homogenization aims to reduce and standardize the particle size of liquid products, make them more stable, and obtain better taste and texture. Increase the stability and homogenization of suspended solids, prevent the separation of liquid phase and solid phase, and reduce the use of emulsifiers and additives.


    Tomato mixing and thermal processing line
    Mixing and hot processing line of tomato and ketchup.
    The heat exchanger used is used for heat treatment of high viscosity products.


    The processing capacity is varied from 60 tons/day to 2000 tons/day.

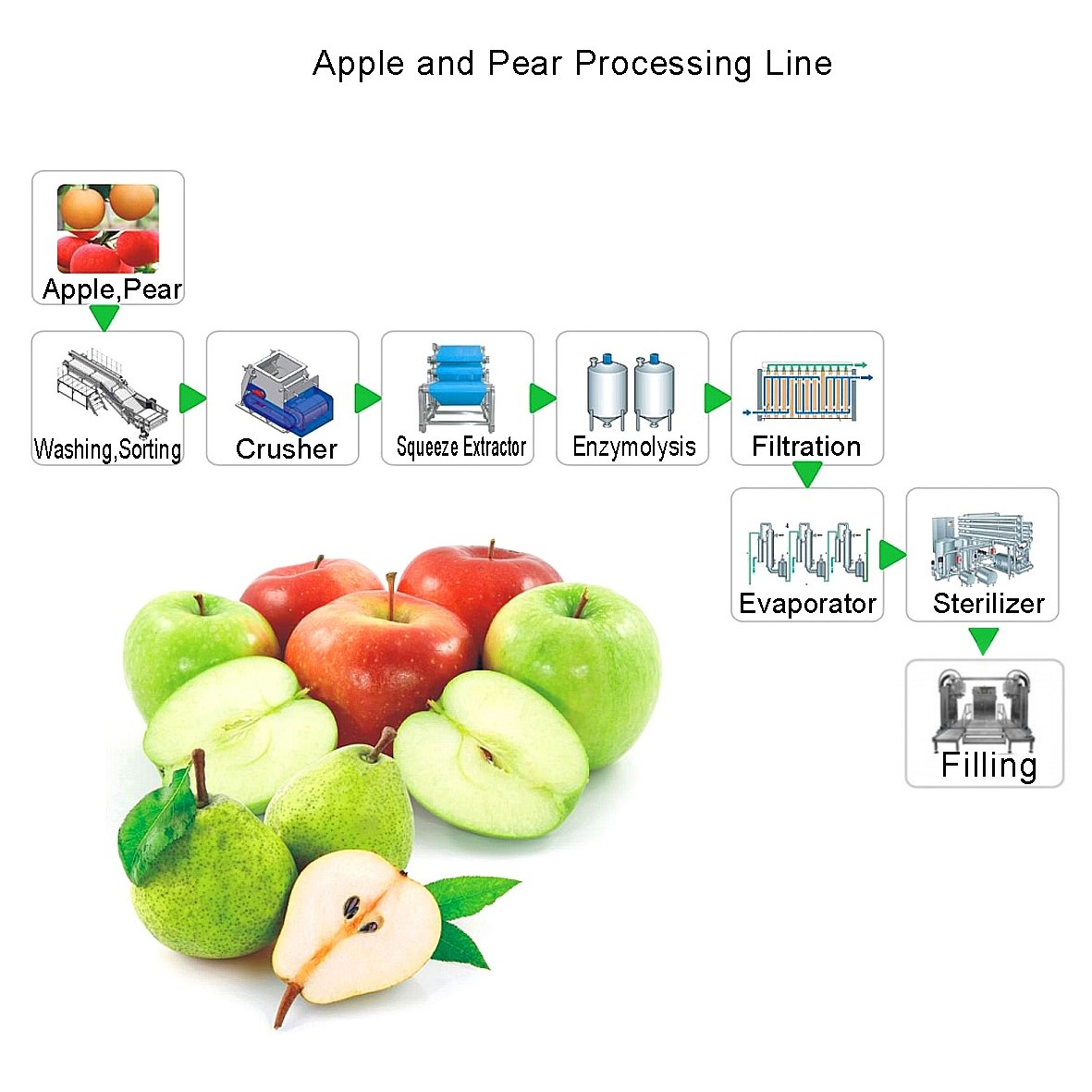

    1. The line Can deal with similar characteristics of fruits.


    2. Automatic disinfection liquid concentration control system, effectively guarantee the sterilization effect and control the disinfection residue


    3. Efficient crusher improved the high output percentage of apples and pears


    4. Using efficient belt juice extractor to improve the juice efficiency and the output percentage


    5. The production process fully automatic PLC control to reduce the labor intensity and Improve production efficiency


    6. Low-temperature vacuum evaporation Greatly reduce the flavor substances and nutrient losses


    7. A variety of energy recovery measures , increased the energy utilization and greatly reduce production cost


    8. Tubular UHT sterilizer and Aseptic filling machine, Isolated from the pollution of bacteria,ensure the safety of the food and extend the shelf life of the product


    9. A complete set of production with self CIP system reduce the labor intensity and ensure the high level sanitation.


    Parameters

    Raw materialFresh apple/pear
    End productConcentrated juice, clear juice,NFC fresh juice
    Processing capacityFrom 60tons/day to 1500 tons/day
    Output percentage60-75%
    Solid content10-12Brix
    concentrated juice content65-72Brix
    End packageAseptic bag/gable top box /PET bottle

    CIP cleaning device
    Cleaning principle
    Correct cleaning of processing plants is the basic requirement of food production. The whole cleaning operation in the food industry is called disinfection, which consists of two main stages: cleaning and disinfection.
    With regard to cleaning, based on experience, we recommend running after each process cycle.
    Cleaning principle:
    Chemicals: Based on the type and concentration of chemical solutions (detergents) used for cleaning
    Kinetic energy: the use of mechanical power, such as turbulence.
    Heat: refers to the cleaning temperature of the application. Thermal disinfection is carried out by circulating hot water according to the principle of pasteurization. For closed circuits, the recommended temperature is about 85-90 ° C for at least 15 minutes.
