    Stainless Steel Vegetables Fruit Processing Equipment With Spiral Conveyors


    Fruit processing machines Spiral Conveyors Manufacturer for fruit and vegetables


    Introduction

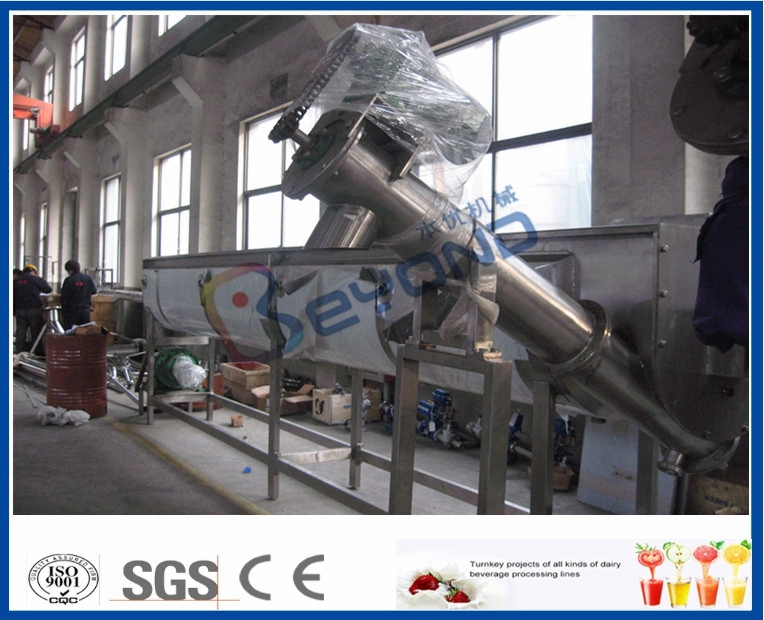

    The horizontal stainless steel screw conveyor includes simplified characters (simplified design includes "U" shaped opening or cover and "O" shaped seal), screw conveyor shaft, end cover, power rotating device and other components.

    The equipment is made of high-quality stainless steel, with simple structure and stable and reliable operation. It is widely used for horizontal or inclined transportation of various dry and wet materials.

    In order to prevent raw materials (such as apples, pears and other fruits) from being damaged by the blades during transportation, we welded stainless steel around the conveying blades.


    ModelDescriptionTransportation capacity

    Suggested power

    (kw)

    Line speedCapacity
    LXSS-U150

    Outer shell and the spiral is made of SUS304 stainless steel, speed can is step-less adjustable

    50-112rpm4-8(m³/H)2-5m0.75
    6-10m1.5
    11-15m2.2
    LXSS-U20050-100rpm7-14(m³/H)2-5m1.5
    6-10m3
    11-15m4
    LXSS-U25045-90rpm13-24(m³/H)2-5m2.2
    6-10m4
    11-15m5.5
    16-207.5
    LXSS-U30040-80rpm16-32(m³/H)2-5m3
    6-10m5.5
    11-15m7.5
    16-2011
    LXSS-U35036-72 rpm26-52(m³/H)2-5m4
    6-10m7.5
    11-15m11
    16-2015
    LXSS-U40036-72rpm30-60(m³/H)2-5m5.5
    6-10m11
    11-15m15
    16-2018.5


    This equipment is a machine that uses the reducer to drive the spiral rotation to promote the material to achieve the purpose of conveying. The utility model has the advantages of simple structure, small cross-sectional area, convenient closed transportation, multi-point feeding or unloading, etc.

    ♦ Shell form: "O" type or "U" type;

    ♦ Spiral: no axis, single axis or multi axis;

    ♦ According to the different flow direction of materials, the following five feeding and discharging methods can be selected.


    Model and parameters

    Effective width: 200-400mm
    Lifting angle: ≤45°
    Single machine drive limit length: 1000-10000mm
    Conveying speed: maximum 27m/min (adjustable)
    Motor power: 0.37/0.55/0.75/1.1/1.5 /2.2Kw
