Orange juicer machine automatic industrial orange juice extractor roller type juicer machine

The industrial orange juice machine can efficiently process all kinds of fruits and extract juice continuously. This industrial orange juice machine can realize full automation, and the operation is very simple. It can be competent only with simple training.

Multifunctional stainless steel drum Juicer: the spiral commercial juicer is suitable for all kinds of fruits and vegetables. It can be used to automatically separate fruit juice from waste, such as melon, apple, orange, pineapple, pear, lemon, pomegranate seed, papaya, tomato, beet, carrot, etc.

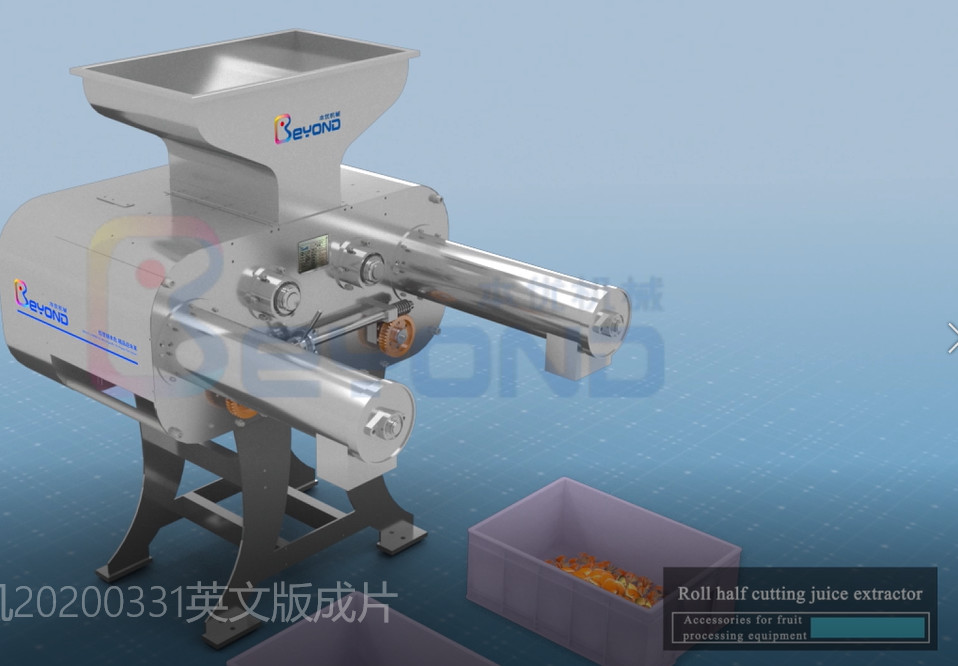

Roller half-cut juice extractor is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.

Equipment description

This machine is the international advanced continuous automatic juice extracting machine used for orange, lemon, grapefruit, etc. After the grading and oil extracting, the fruit(orange, lemon, grapefruit) will be fed into this machine, and transported through the bowl-shape conveyor , it will cut them in to two halves, and separately send to two vertical rotating hubs to get the juice, and automatically separate the peel and juice. This machine is continuous type automatic rotation coning juice, it is advanced in structure, stable in transmission, high in production efficiency. During the juicing extracting process, it will not crush the peel of fruit, thus it will provide the high quality juice with high juice yield.

It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.

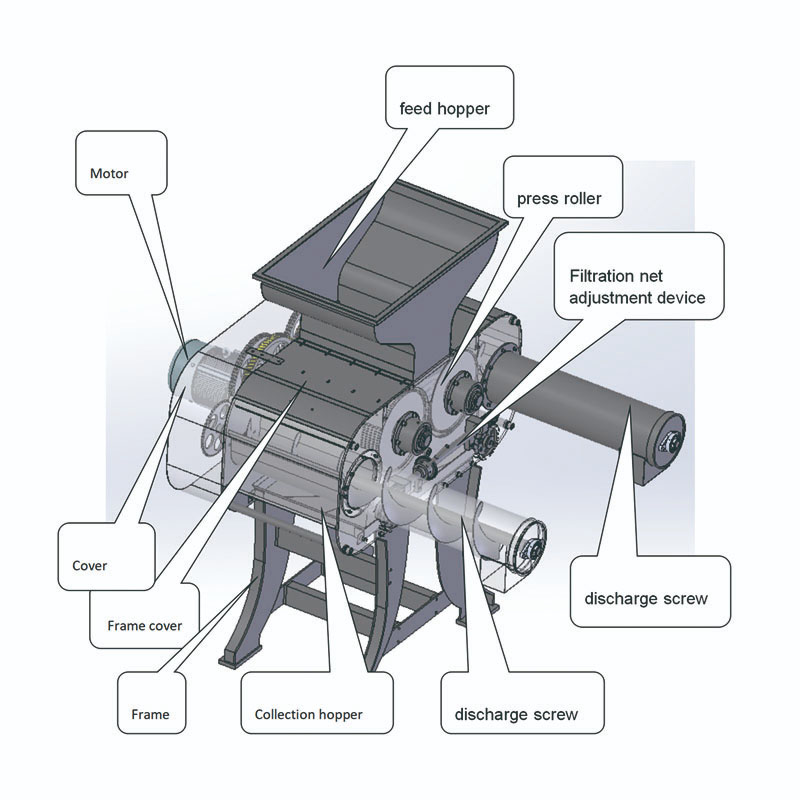

It adopts the foreign advanced technology, can be applicable for fresh juice extracting from tangerine, orange, grapefruit, lemon, etc., and avoid the bitter vegetable oil remained in fruit cells and residue from fruit peels.This machine is composed of the parts: machine frame, gear box, juice collecting bucket, left rotor drum, blades, 4-opens rotary tables, right rotor drum, bowl-shape conveyor, safety cover, driving motor, etc. The working theory is the motor drives the main shaft through the V-belt pulley, the main shaft will transfer the power to the following structures: bowl-shape conveyor, 4-opens rotary tables, left rotor drum, and right rotor drum.

Features of industrial orange juice machine:

1. This machine is made of stainless steel. Therefore, it is easy to clean and disinfect. Always keep the inside and outside of the machine clean after each use.

2. Before blanking, please cut the fruits and vegetables in half and move the spiral shaft clockwise.

3. Advanced design, compact structure and beautiful appearance. Complete all kinds of fruit and vegetable juice automatically and separate residue juice automatically. High efficiency, energy saving, low noise and no pollution.

The industrial orange juice machine can be customized according to the production needs of customers, so that this semi cutting drum Juicer can fully meet the production and installation needs of customers, and better play an important role in daily work. We provide integrated services of pre-sales design and after-sales installation and commissioning, so that customers from different countries can use it at ease.

Shanghai Beyond Machinery Co., Ltd, as a private business started in the year of 2005, is a specialized technology-oriented machinery manufacturing enterprise. Beyond specializes in the turn-key projects of the design, manufacture, installation and commissioning for the production lines of liquid food such as dairy, drink, ice cream, fruit and vegetable, bio-engineering, chemical and pharmaceutical.

Cooperated with several domestic and abroad Light Industrial or scientific research institutions, we absorb their advanced technology and then take base to develop new even better process techniques, we are now specializing in all kind of sanitary tank, pot, container, heater, cooler, sterilizer, concentrator, pump and other pipe and fittings.The equipments are in accordance with the relative standards of Juice, Dairy, Pharmacy, bio-chemical, such as HACCP, QS and GMP.

Through the years of the common efforts of our staff, we have obtained high share in the market of machinery industry, and have developed ourselves into a medium-sized enterprise of certain popularity in the industry. Combining scientific research, technical development, production, marketing and after-sale service, we keep ourselves acting strictly in accordance with the quality assurance system of ISO 9001.

Production range:

Processing Machinery For Various Fruits and Vegetables

Conveyor and elevator series

Washer and sorter series

Pulper and crusher series

Evaporator and deaerator series

Stainless steel tanks series

CIP cleaning series

Crate washing machine

Various Fruits and Vegetables Production Lines

Complete unit of citrus processing line, include orange, lemon, pomelo, grapefruit etc.

Complete unit of Chinese date/Jujube and hawkthorn processing line

Complete unit of sea-buckthorn processing line

Complete unit of peach / apricot and plum processing line

Complete unit of pineapple / mango and other tropical fruits processing line

Complete unit of tomato processing line

Complete unit of apple/pear processing line
