    Film Deposition Multiple Effect Evaporator For Food Industry Processing

    Ask Lasest Price
    Brand Name : BEYOND
    Model Number : BY-EV
    Certification : CE certificate/ISO9001/SGS
    Price : negotiable
    Supply Ability : 5 unit per month
    Delivery Time : 90-110 days
    • Product Details
    • Company Profile

    Film Deposition Multiple Effect Evaporator For Food Industry Processing

    Manufacture and sale of film deposition equipment for food industry processing Fruit Juice Processing Machines



    Evaporator is very important in vegetable and fruit processing industry. Falling film evaporators and rising film evaporators are used to process dairy products, prepare concentrated fruit juices and other sensitive products by rapid operation without exposing these products to high temperatures that may affect their quality.
    Our evaporator series includes falling film evaporator and rising film evaporator, including five effect falling film evaporator, forced circulation evaporator, double effect forced circulation evaporator and double effect evaporator. We also provide simple multi effect evaporator, and finally use hot steam recompression and mechanical steam recompression to save energy.

    Falling Film Concentrator for AppleJuice

    1.Design requirements
    1.Material: Apple clear juice, peach clear juice , or pear clear juice, or similar juice.
    2. Evaporating capacity: 4T/h, material inlet: 5t/h
    3. material original concentration: 6~10%

    2.Designed parameter

    Machine typeThree-stage falling film downstream evaporator
    Steam consumption:~1600kg/h;0.1~0.3Mpa;
    Evaporating capacity4T/h, material inlet: 5t/h;
    Cooling water consumption~96t/h,inlet30°C,outlet38°C
    First stage evaporating temperature72~82℃ (-0.071~-0.051)
    Second stage evaporating temperature60~70℃(-0.080~-0.069)
    Third stage evaporating temperature45~55℃(-0.09~0.085)
    Total rated power~28KW


    3. Application
    This equipment is widely used in the luquid material concentrating, like milk, glucose, oligosaccharides, sorbitol, fruit and vegetable juice. And there is a wide range of applications on the concentrating of aqueous solution and organic solvent solution in the area of food processing, pharmacy, grain processing, beverage ,light industry, environmental protection as well as the chemical industry etc.


    Jam and jam are one of the most popular breakfast foods on the market. However, their handling is very complex and needs to be handled under strict regulations. We have high-end equipment that can make transparent and block jam and jam: from kettle to storage system, as well as equipment for mixing, vacuum packaging and filling glass cans.
    In addition, we also provide sugar powder feeding screw conveyor, diaphragm pump for feeding fruit mud or concentrate, and silo dumper for diced fruit. We can produce jam and jam from fresh fruit and concentrated fruit.



    4. Features

    1). Uniformity Steam heating: it has the characteristics of high heat transfer efficiency and short heating time.

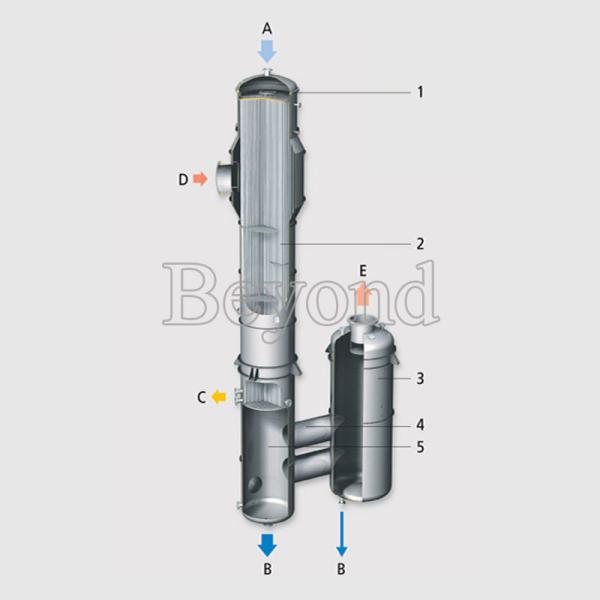

    2). Evenly distributation of materials: Material are evenly distributed in the evaporator heating tube by the distribution device, materials, under the action of gravity and vacuum induction and its airflow, flow from top to bottom in film-like form, and are evaporated in the process of movement through heat exchanging with the heating steam of heating tube outer wall.

    3). Vacuum evaporating: The evaporation works under the vacuum condition, and in a relative low evaporating temperate, thus it is not easy to lead to the scale formation in evaporator.

    4). CIP cleaning: This machine is equipped with CIP cleaning head, and easy to clean whole machine, dead-zone free.

    5). Continiously working: Materials are continiously feeded and discharged.

    5. Equipment configuration list

    NO.NameSpecQtyUnitRemarks
    1First stage evaporator57m21piece

    Material: SUS304, tubular type; with material distributing device;shell diameterΦ442,thickness:3mm,
    heat-exchanging tube sizeΦ25X1.2,121 pieces of tubes.

    2Second stage evaporator73m21piece

    Material: SUS304, tubular type; with material distributing device;shell diameterΦ546,thickness:3mm,
    heat-exchanging tube sizeΦ32X1.2, 121 pieces of tubes.

    3Third stage evaporator86.6m21piece

    Material: SUS304, tubular type; with material distributing device;shell diameterΦ622,thickness:3mm,
    heat-exchanging tube sizeΦ38X1.5, 121 pieces of tubes.

    4First stage separatorΦ800X1600X41pieceTangent intubation are connected to the evaporator; with sight glasses and cleaning nozzle; The steam-liquid separation; 304 shell material, oval head
    5Second stage separatorΦ800X1600X41pieceTangent intubation are connected to the evaporator; with sight glasses and cleaning nozzle; The steam-liquid separation; 304 shell material, oval head
    6Third stage separatorΦ1000X2000X41pieceTangent intubation are connected to the evaporator; with sight glasses and cleaning nozzle; The steam-liquid separation; 304 shell material, oval head
    7Condensor83m21piece

    Material: SUS304, tubular type; with material distributing device;shell diameterΦ548,thickness:4mm,
    heat-exchanging tube sizeΦ32X1.2, 139 pieces of tubes.

    8Valve pipe fittings1setThe connection tubes between the evaporator system, the material 304, excluding raw steam pipes, cooling water pipes, process water pipe and outer pipe system
    9Electric instrument1set

    Including thecontrol cabinet, thermometer, pressuregauge,

    system cable, flowmeter etc.

    10Platform1setCarbonated steel

    6. Working process:

    The primary steam firstly enters into the first stage heating chamber to heat the materials, and in the vacuum condition, injects into first stage evaporating chamber through tubes, the materials return back to heating room through curve, and are heated again then injected to evaporating section, and form the circular. When the material liquid is sprayed into the evaporation chamber and nebulized, moisture is quickly evaporated, and the evaporated second steam enters to the second stage heating chamber to heat the material, and in the vacuum condition, injects into second stage evaporating chamber through tubes, the materials return back to heating room through curve, and are heated once more then injected to evaporating section, and form the circular. Then the material liquid is sprayed into the evaporation chamber and nebulized, moisture is quickly evaporated, and the evaporated third steam enters to the third stage heating chamber to heat the material and finally the steam goes into the condensor, and cooled by tap water into condensate water, and discharged tilll it reaches hlaf of the sight glass.


    The moisture in the liquid material is continiously evaporated and concentration is increased to the expected rate and discharged from outlet.

    The cooling water temperature will be increased to 30 -40 degree after the condenser exchanging, and sent to the water resource for whole plant usage or cooling tower recycling .




    Film Deposition Multiple Effect Evaporator For Food Industry ProcessingFilm Deposition Multiple Effect Evaporator For Food Industry Processing



    Mixed evaporator
    Our multifunctional evaporator series can handle ultra-high temperature products with high viscosity and difficult to process. The mixed evaporator releases the best function of our forced circulation evaporator. It uses a series of multi effect evaporators for upward forced flow recirculation in tomato concentrate and vertical shell and tube heaters. Each effect basically includes: a vertical tube nest; Liquid gas separation chamber and recirculation pump.


    Features and advantages
    Reduce energy consumption
    It has the advantages of fast cleaning speed, simple operation and less maintenance, which greatly reduces the cost
    Reduce the holding time, especially in the case of high concentration and greater thermal damage
    The special inducer ensures very high efficiency in special working environment and prevents cavitation in other units
    Improve the sensory characteristics of output products to achieve the highest quality of viscous products


    Options and models
    Forced circulation evaporator
