    SUS304 Auto Drink Making Machine / Soya Milk Plant With 6-9 Months Shelf Life

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : BYNNX
    Certification : CE certificate/ISO9001/SGS
    Price : negotiable
    Supply Ability : 20 pcs per month
    Delivery Time : 90-120 days
    • Product Details
    • Company Profile

    SUS304 Auto Drink Making Machine / Soya Milk Plant With 6-9 Months Shelf Life

    5000L per hour soybean milk plant with bottle package with 6-9months shelf life


    SeriesName.SizeSpecificationQtyUnit
    A. soybean milk making unit
    A-1electric pound scale maximum weighing 250kg1PCS
    A-2steam and water mixerQ=10T/hmade of SUS304 stainless steel,mix the steam and water1PCS
    A-3heat dip tankV=1000Lmade of sus304 stainless steel, square shape, with filter at bottom, easy to change the water inside, easy to discharge via large diameter outlet4PCS
    A-4drooling channel made of sus304 stainless steel,size is 200*200mm1SET
    A-5impurity clearing drpooling channel made of sus304 stainless steel,200*200mm1SET
    A-6vibration boultQ=200Kg/hthe capacity says to dry soyabean,the machine is made of sus304 stainless steel, with shower device1PCS

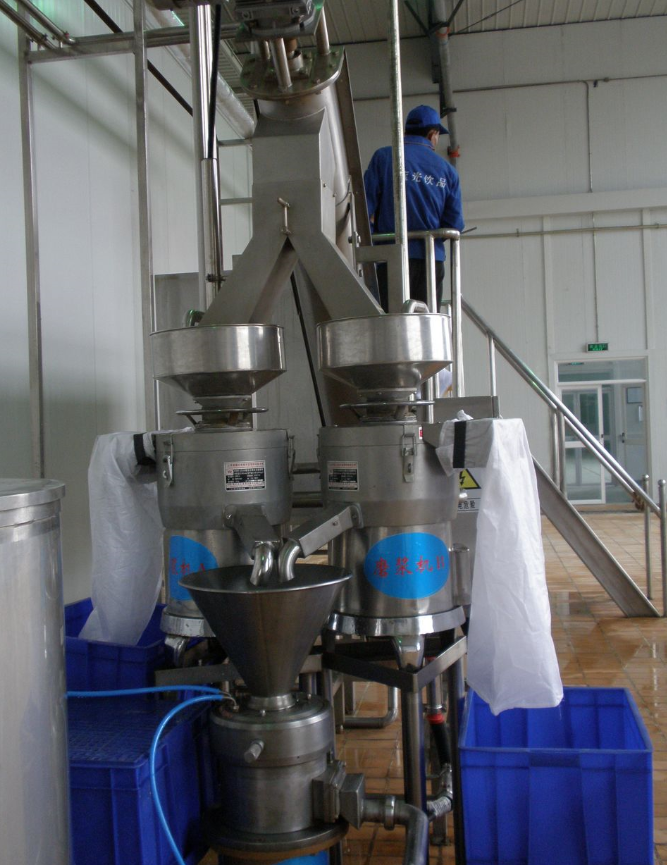

    A-7milk and residue seprator(grinder)Q=150Kg/h(based on dry bean), diameter Φ200, 90mesh filter mesh2PCS
    A-8mixture of milk and residue barrel
    (with agitator)
    V=200Lmade of sus304 stainless steel,it is 200L square tank,with vertical agitator3PCS
    A-9mixture dreg with soy milk pumpQ=3T/hmade of sus304 stainless steel, pump head is 24m,carbide tipped mechanical seal, the inner shell is mirror polished4PCS
    A-10centrifuge separatorQ=300Kg/hSUS304,90 mesh filter screen,(measured by dry soybean weight )2PCS
    A-11Screw dregs discharge machineQ=150Kg/h(measured by dry residue weight ), SUS304 stainless steel1PCS
    A-12soybean milk Collecting sinkV=200Lmade of sus304 stainless steel,square shape,1PCS
    A-13fresh soy milk tankV=600Lmade of sus304 stainless steel,square shape, with CIP cleaning ball1PCS
    A-14centrifugal pumpQ=3T/hmade of sus304 stainless steel, pump head is 24m,carbide tipped mechanical seal, the inner shell is mirror polished3PCS
    A-15continous cooking machine for soy milkQ=1.5T/hmade of sus304 stainless steel,have 3 tanks for continous cooking1PCS
    A-16vibration round boultQ=2T/hmade of sus304 stainless steel,equiped with vibration motor,and 100 mesh filter net1PCS
    A-17buffering tankV=2000Lmade of sus304 stainless steel,single layer,with off-set vertical agitator,conical cover and bottom, airtight manhole,air vent,digital show thermometer,CIP cleaning ball,glass level meter,anti bow wave plate,with adjustable feet1PCS
    A-18support table for diping the soybean frame and support is made of carbon steel,on the top surface is of sus304 stainless stell,water drainage by centralized1SET

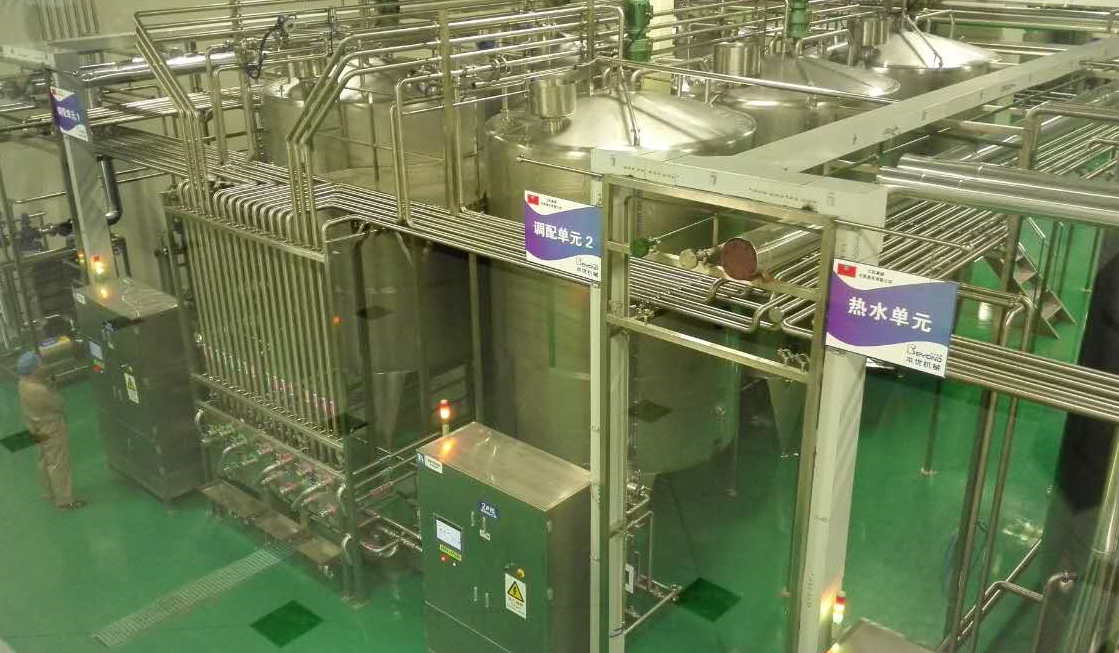

    B. hot water preparing unit
    B-1hot water tank5000Lmade of sus304 stainless steel,double layer with PU as heat insulation, thickness of PU is 60mm,inner shell is of sus304 ,thickness is 3mm,and outer shell is also made of sus304 stainless steel,the thickness of it is 1.5mm,with glass level measure(have exact scale) at the position of 135 degree,CIP cleaning ball, manhole at 45 degree,digital show termometer, diameter of inlet/outlet is φ511PCS
    B-2hot water pump10T/Hmade of sus304 stainless steel,carbide tipped mechanical seal,inlet/outlet is φ51,pump head is 36m1PCS
    B-3plate heater10T/Hthe plate is made of sus304 stainless steel,inlet/outlet is φ51,A3 frame coated by sus304 stainless steel sheet,heat by steam,△T1=60℃1PCS
    B-4temperature auto control system UK Spirax Sarco temperature reducing system, Germen Burkert regulating valves,the temperature is auto controled1SET
    C. blending and preparing unit
    C-1high speed emulsification tank500Lsquare shape,PU insulation is 60mm thick, inner shell is 3mm sus304 stainless steel,outer shell is 1.5mm thick sus304 stainless steel,1PCS
    C-2centrifugal pump5T/Hmade of sus304 stainless steel, pump head is 30m,carbide tipped mechanical seal1PCS
    C-3double pipeling filter5T/Hmade of sus304 stainless steel,100 mesh,inlet/outlet φ511PCS
    C-4blending tank2000Lmade of sus304 stainless steel,single layer,thickness of the shell is 3mm,with glass level measure(have exact scale) at the position of 135 degree,CIP cleaning ball, manhole at 45 degree,digital show termometer,60rpm vertical ring agitator, diameter of inlet/outlet is φ51,sample valve3PCS
    C-5centrifugal pump3T/Hmade of sus304 stainless steel,carbide tipped mechanical seal,inlet/outlet is φ51,pump head is 24m1PCS
    C-6double pipeling filter3T/Hmade of sus304 stainless steel,100 mesh,inlet/outlet φ511PCS
    C-7support table for input the material1200*800*1200stainless steel bearing surface,water drainage in central,with protection fence and ladder.1PCS
    D. sterilize and filling unit
    D-1UHT sterilizer2T/H
    2T/H,aseptic tubular type,inlet at 15~20℃,sterilize at 137℃ holding for 4S,outlet at room temperature,with self CIP cleaing system.auto water complement,auto dirt drainage,auto flow return.controlled by the PLC,Germen seimens 10 inch color touch screen. braze welding type heat exchanger.UK spirax sarco steam reduce and regulating system,Germen IFM temperature sensor. Germen Burkert hot water regulating valve,GEA pneumatic butterfly valve,shanghai yuanan pneumatic two position three way valve,Germen E+H electromagnetic flowmeter,sus304 stainless steel control box,thickness≥2.5mm,electric control system,AC contactor and breaker and relay, the brand of operation buttons are DELIXI or schneider.
    1PCS
    D-2deaerator system2T/Hmade of sus304 stainless steel,vaccum pump1SET
    D-3homogenizer2T/H40Mpa,including starting box1PCS
    D-4aseptic brick packing machine 250ml/bag, brick shape,7500bag/h1PCS
    D-5straw sticking machine 7500 bag/h1PCS
    E. water treatment system
    E-1water treatment system5T/Hfour stage filter: silica sand,active carbon,micro-hole film filter,one grade RO reverse osmosis system,with high pressure pump and water storage tank1SET
    F. CIP unit
    F-1semi auto CIP system3*1000LSUS304,Single cleaning path,composed of 3 solution storage tank,aci/alkali and water tank,the tanks are all heat insulated,outer shell of tank is 1.5mm,inner shell 3mm thick,inlet at top and outlet at bottom,there is wind pipes in the tank for steam heating,semi auto control,the temperature is auto controlled,there is warning device at high level and low level,concentrated acid and alcali is pumped by US imported diaphragm pump;20T/H centrifugal pump, pump head is 24m, two 100L concentrated acid/alcali storage tank.1SET

    No.Project informationPlaceRemark
    15 t/H Soy milk, Peanut milk Production LineSichuan ChengduTurnkey Projects
    2100 t/D paddan drink production lineXinjiang UrumqiTurnkey Projects
    33 t/H soya-bean milk production lineShandong weifangTurnkey Projects
    4100 t/D bean yogurt production lineAustraliaTurnkey Projects
    55 t/H corn grains full-automatic drink production lineShandong JinanTurnkey Projects
    61T/H Cereal production lineZAMBIATurnkey Projects
    7

    9T/H peanut and walnut

    milk line

    HebeiTurnkey Projects
    8100 t/D soy milk production lineDalianTurnkey Projects
    92T/H Soy milk production lineGhanaTurnkey Projects
