    CE Certified Soup Production Meat Processing Machine Full Auto Meat Deep Processing


    2000L per Day Bones/Meat Deep Processing Lines for soup processing and protein extracting


    Bones/Meat Deep Processing Lines

    The bones and meat ( of chicken /pig /cow) deep processing production lines that our company is supplying are widely used in production industries such as meat-product processing, bone soup, bone flavoring essence, pet feed, flavoring seasoning packet etc.


    Composition of bones/meat processing production lines:


    Raw bones grinding system, extraction tank system, water recovery system, soup separation tank system, concentrating system, prepare and pasteurizing system, Maillard reaction tank system, finished product storage system, filling system, residue broken bones system, electrical control system.

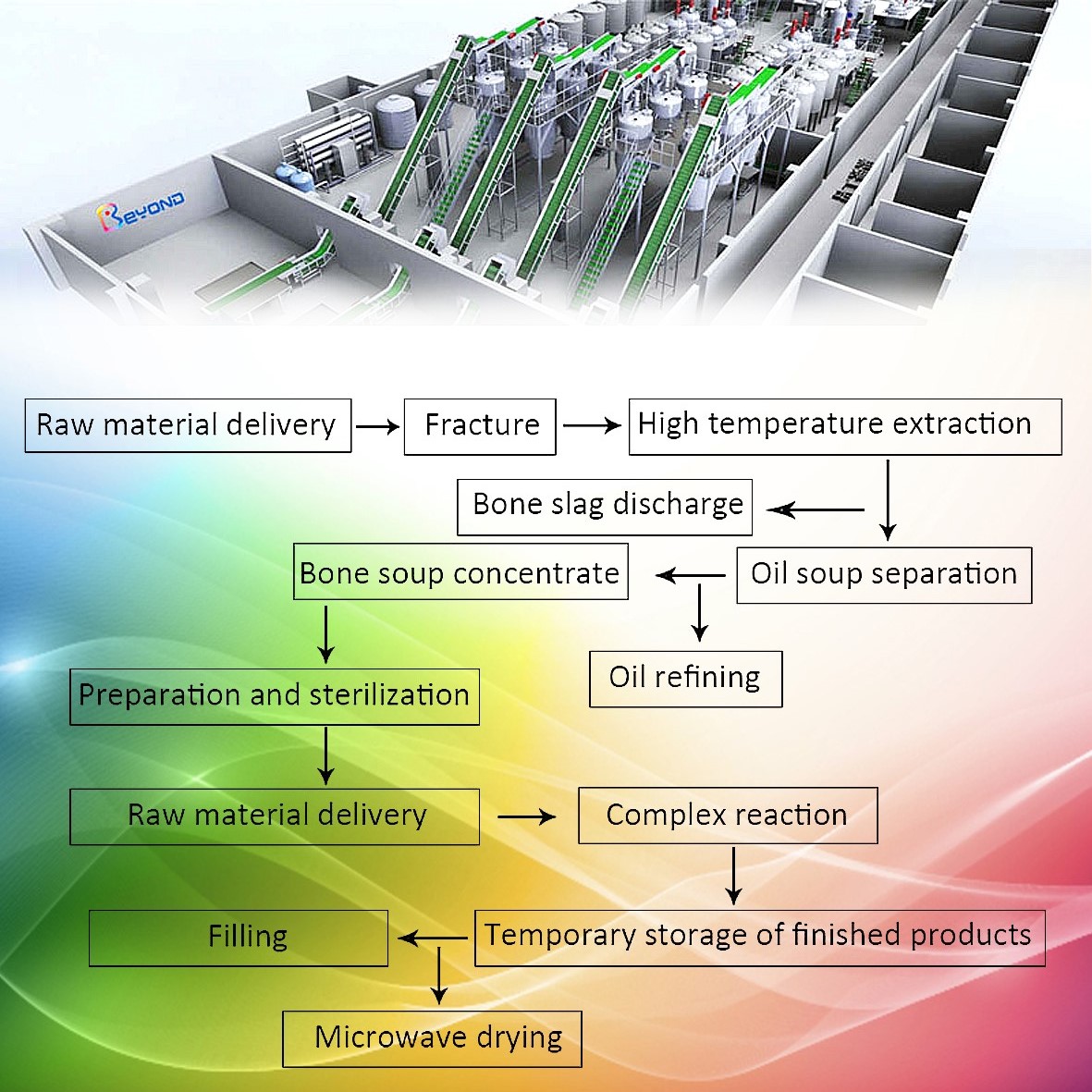

    Procedure flow of bones & meat deep processing production lines

    Procedure flow: raw animal bones — grinding — pre-processing — extraction— separating — concentration— blending prepare — drying(filling / packing)— finished product

    Main machine list


    1FRESH RAW MATERIAL SYSTEM
    2Grinder  1
    3Screw pump10T/Houtlet pressure 0.6MPA, frequency control motor, material SUS304, inlet and outlet size DN653
    4Fresh raw material storage tank10M3SUS304 stainless steel, three layer dimple jacket ,Top center frame stirring, airtight manhole, digital display thermometer, CIP cleaning ball, cylinder legs, glass tube liquid level indicator, sample valve, Capacitor type high, low level gauge interface2
    5Weighing module unit15000KGSiemens brand, one unit consist of 3 pcs Shear beam type weighing module, with display instrument, bracket, signal cable, junction box2
    6Centrifugal pump20T/HSUS304 stainless steel, 24 meters lift, mechanical seal2
    7Temperature control system Germany Burket pneumatic Angle seat valve, JUMO temperature sensor2
    8LIQUID RAW MATERIAL DOSING SYSTEM
    9Liquid Premix tank0.2M3SUS304 stainless steel, single layer, Vertical cylindrical tank, airtight manhole, breather cap, digital readout thermometer, Four cylindrical legs1
    10Capacitor level meterG1/2"PNP,threaded connection2
    11Liquid Buffer tank0.2M3SUS304 stainless steel, single layer, Vertical cylindrical tank, airtight manhole, breather cap, digital readout thermometer, Four cylindrical legs3
    12Capacitor level meterG1/2"PNP,threaded connection6
    13Scale hopper tank0.05M3SUS304 stainless steel, single layer, Vertical cylindrical tank, airtight manhole, breather valve, digital readout thermometer, Two legs weighing module interface.6
    14Weighing module unit100kgMettler Toledo & Siemens brand, one unit consist of 1 pcs single point Weighing module, with display instrument, bracket, signal cable, junction box6
    15Centrifugal pump10T/HSUS304 stainless steel, 24 meters lift, mechanical seal4
    16Centrifugal pump3T/HSUS304 stainless steel, 24 meters lift, mechanical seal3
    17measuring support SUS304, Measuring stacking support, stainless steel square pipe 100*50 mm, size: 5000*1200*2500(L*W*H)1
    18REACTION SYSTEM
    19Reaction tank
    (Pressure tank)
    10M3Inner layer is SUS316L, other SUS304, three layer jacketed tank, up and down elliptical head cover, heating hollow jacketed ,Jacket is divided into upper and lower two layers, can do half a tank of materials, tank pressure - 0.1-0.3 mpa, jacketed acuities were 0.4 mpa, external thermal insulation, top center scraping wall mixing (speed 21 to 63 r/min, frequency control of motor speed, mechanical seal),Top eccentric and decentralized high-speed mixing (speed 960RPM, frequency conversion speed regulation, mechanical seal), pressure quick-opening manhole, manhole center with glass sight, relief valve, needle gauge, electric contact pressure gauges, sight glasses lamp, at the top of the CIP cleaning ball, one set at the bottom of the temperature sensor and digital display thermometer 1, tank wall mirror polishing. Three cylindrical legs, high and low capacitance liquid level gauges.2
    20Capacitor level meterG1/2"PNP,threaded connection4
    21Weighing module unit15000KGSiemens brand, one unit consist of 3 pcs Shear beam type weighing module, with display instrument, bracket, signal cable, junction box2
    22Temperature SensorPT1000SUS304, 4-20mA signal output, range from 0-200℃2
    23Temperature control system UK Spirax sarco reducing valve, trap system, Chinese famous brand stop valve, steam instrument2
    24Rotor pump10T/Houtlet pressure 0.6MPA, frequency control motor, material SUS304, inlet and outlet size DN504
    25Circular vibrating screen10T/HSUS304 stainless steel, solid-liquid separation (double layer), screen surface diameter 1500mm, 80 mesh aperture2
    26Buffer tank1M3SUS304 stainless steel, single layer airtight manhole, digital display thermometer, CIP cleaning ball, adjustable legs, glass tube indicator, sample valve, Capacitor type high, low level gauge interface2
    27Capacitor level meterG1/2"PNP,threaded connection4
    28Allocate PlateØ51SUS304 stainless steel, five holes, with five manual butterfly value, with water receiver pan2
    29  STORAGE TANK SYSTEM
    30Temporary storage tankV=20M3SUS304 stainless steel, single layer airtight manhole, with decentration paddle mixer, 32 RPM,digital display thermometer, CIP cleaning ball, three cylinder legs, glass tube indicator, sample valve, Capacitor type high, low level gauge interface, Top guardrail, manhole ladder with guardrail2
    31Weighing module unit15000KGSiemens brand, one unit consist of 3 pcs Shear beam type weighing module, with display instrument, bracket, signal cable, junction box2
    32Capacitor level meterGO/2"PNP, threaded connection4
    33Rotor pump10T/Houtlet pressure 0.6MPA, frequency control motor, material SUS304, inlet and outlet size DN502
    34Electromagnetic flowmeter10T/h4-20mA signal output, with pulse counting2
    35Allocate PlateØ51SUS304 stainless steel, five holes, with five manual butterfly value, with water receiver pan2




    4



    Product Specifications


    ConditionNew
    Brand nameShanghai Beyond;
    Typewhole processing Line/turnkey project/bones and meat processing line
    Voltage220v/380v
    Power(W)100-200kw
    WeightDifferent size different weight/customized
    Dimension(L*W*H)Different size different dimension/customized
    CertificationCE&ISO
    Warranty12 months/1 year
    After-sales Service ProvidedEngineers available to service machinery overseas
    Main materialSUS304 or SUS316
    Control typeautomatic, semi-automatic
    energy consumptionLow consumption with high efficiency
