    2TPH Tomato Paste Processing Line

    Ask Lasest Price
    Brand Name : Shanghai Beyond
    Model Number : BY-MPL
    Certification : ISO9001/CE/SGS
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 50 Sets Per Season
    Delivery Time : 60-120 working days upon receipt of payment and confirmed the drawings
    • Product Details
    • Company Profile

    2TPH Tomato Paste Processing Line

    Tomato Paste/Ketchup/Sauce complete set of processing line/Turnkey Project


    Shanghai beyond offers complete tomato ketchup production line, on turnkey basis to produce the following end products from tomatoes.
    (1)Tomato puree from tomato processing plant;
    (2)Tomato paste from tomato paste processing plant;
    (3)Tomato ketchup/sauces from tomato ketchup puree plant;
    (4)Tomato juices from tomato juice processing plant;
    Packing lines can be offered depending upon the requirement like product in glass bottles, cans, drums, etc. Manufacturing process involves most modern technology of vacuum evaporation using forced circulation evaporators/scrapped surface evaporators. Evaporation plants are versatile in nature and can concentrate other juices also.


    Production line machine composition:
    A.fruit collecting and feeding;
    B.tomato washing machine;
    C.tomato sorting machine;
    D.cold break tomato pulping machine;
    E.tomato puree storage tank;
    F.tubular tomato pre-heating machine ;
    G.tomato refining machine;
    H.tomato paste/sauce/ketchup evaporator;
    I.tomato paste/ sauce/ketchup storage tank;
    J.tomato paste/ sauce/ketchup sterilizer;
    K.tomato paste/ sauce/ketchup aseptic filling machine.


    2TPH Tomato Paste Processing Line


    Main process flowchart


    No.Flow No.NameSizeMain Parameter
    1AHot-water unit
    2A-1hot-water tank1500LSUS304,double layers,PU Insulation,coil pipe heating, air-tight manhole,water inlet,digital thermometer,glass level,ladder,adjustable legs
    3A-2water Pump5T/hSUS304,pump lift 24M,machinical sealing,inner polised
    4A-3temperature control system5T/htemperature automati control, Germany Burkert angle seat valve, Sprirax sarco steam trap
    5 Subtotal A
    6BDissolving unit
    7B-1Emulsification tank500LMaterial is SUS316, insulation, bottom fast emulsifying head,digital show thermometer, adjustable legs
    8B-2Centrifugal pump5T/hMaterial is SUS316, pump lift is 36 meters,machinical sealing
    9B-3Double bags filters5T/hMaterial is SUS316,duplex pipe,stainless steel filter 100 meshes
    10B-4Material
    feeding platform
     SUS304,1500*1000*1200mm
    11 Subtotal B
    12CBlending unit
    13C-1Screw pumpQ=3T/HSUS304, inverted, movable, liftable, outlet pressure 0.6MPa
    14C-2Blending tank1000LSUS316L, heat insulated, high speed mixer mounted from top to bottom, the speed is 2900rpm, off cent mixer,digital readout thermometer, liquid mirror, sampling valve, breathing valve, tight manway, anti-vortex plate, supporters with adjustable feet, CIP cleaning ball
    15C-3temperature control system UK Spirax sarco reducing valve, trap system, Chinese famous brand stop valve, steam instrument
    16C-4Rotor pumpQ=2T/Hfood grade, outlet pressure ≤0.6MPA
    17C-5Double bags filters2T/hMaterial is SUS316,duplex pipe,stainless steel filter 100 meshes
    18C-6Blending platform SUS304,3000*800*1500mm
    19 Subtotal C
    20DSterilizer Unit
    21D-1Tube-in-tube sterilizerQ=1T/HSUS316L stainless steel, tube-in-tube type,full-auto PLC controlled, cooling by tower water, UK imported sprirax sarco steam reducing and adjusting system, sterilization temperature is 115℃,30S,out put temperature 85℃
    22D-2Full-auto vacuum degasserQ=1T/HFull-auto control, SUS316L, differential pressure transducer imported from Germany Labom, working vacuum degree -0.64~-0.85Kpa, frequency convertor control flowrate, with condensing device
    23D-3High pressure homogenizerQ=1T/H
    SUS316,two stage homogenize, including frequencysion start cabinet, maximum pressure 25MPa, working pressure 20MPa
    24 Subtotal D
    25EFilling unit
    26E-1High level tank1500Lmaterial is SUS304,insulation,with decentration agitator,conical head,sealed manhole,breather vent,simple valve,digital show thermometer,plate anti vortex,adjustable legs
    27E-2High level platform SUS304,3000*2500*2000
    28E-3standup pouch filling machine SUS304,100g/bag,with suction nozzle,5000bags/h
    29E-4Water bath cooling machine SUS304,with input and out put device,with air dry machine
    30 Subtotal E
    31FCIP system
    32FSemi-auto CIP system1000L×3
    SUS304,insulation,inner shell of acid and alkali tank is SUS 316,outer cladding SUS304,inner shell and out wall of hot water tank is SUS304,single circuits,with coil pipe heating,semi-auto,Germany Burkert temperature auto-control system,America concentrate acid and alkali adding system,200L*2 storage tanks for concentrated acid and alkali.
    33RCIP return pumpQ=20T/hSUS316L,pump head 20m, suction lift 4M,mechanical seal


    Photos from Project cases
    1.Sorting and washing unit
    2TPH Tomato Paste Processing Line

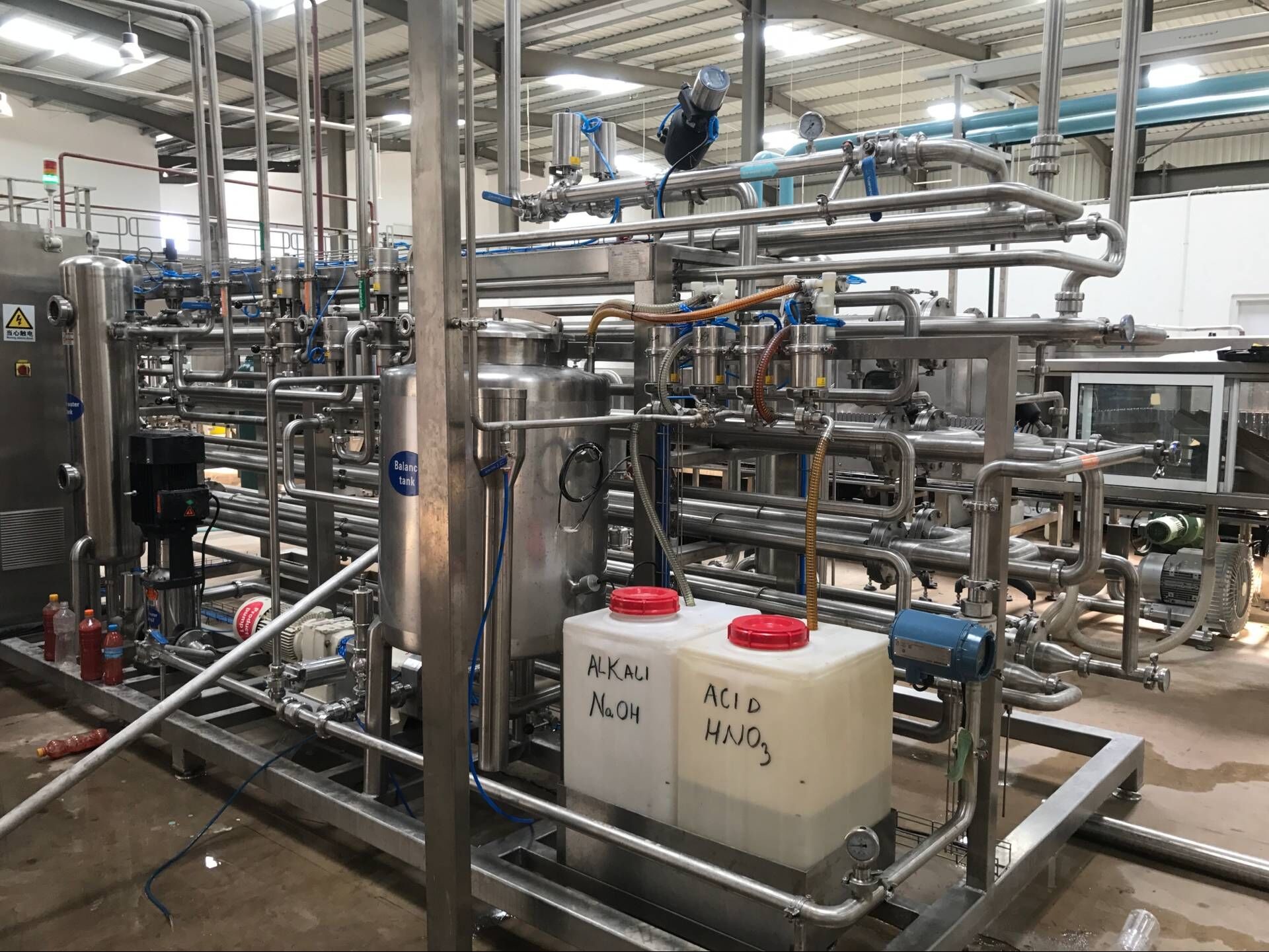

    2.Sterilization unit
    2TPH Tomato Paste Processing Line
    3.Whole plant layout
    2TPH Tomato Paste Processing Line
    4.Buffer and storage tank
    2TPH Tomato Paste Processing Line
    2TPH Tomato Paste Processing Line
    2TPH Tomato Paste Processing Line
