    SGS 1000LPH Egg Liquid Juice Pasteurization Equipment With Touch Screen

    Ask Lasest Price
    Brand Name : Beyond
    Model Number : BY-PP
    Certification : CE certificate/ISO9001/SGS
    Price : 24600-45000USD/Pcs
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 pcs per month
    Delivery Time : 60-90 days
    • Product Details
    • Company Profile

    SGS 1000LPH Egg Liquid Juice Pasteurization Equipment With Touch Screen

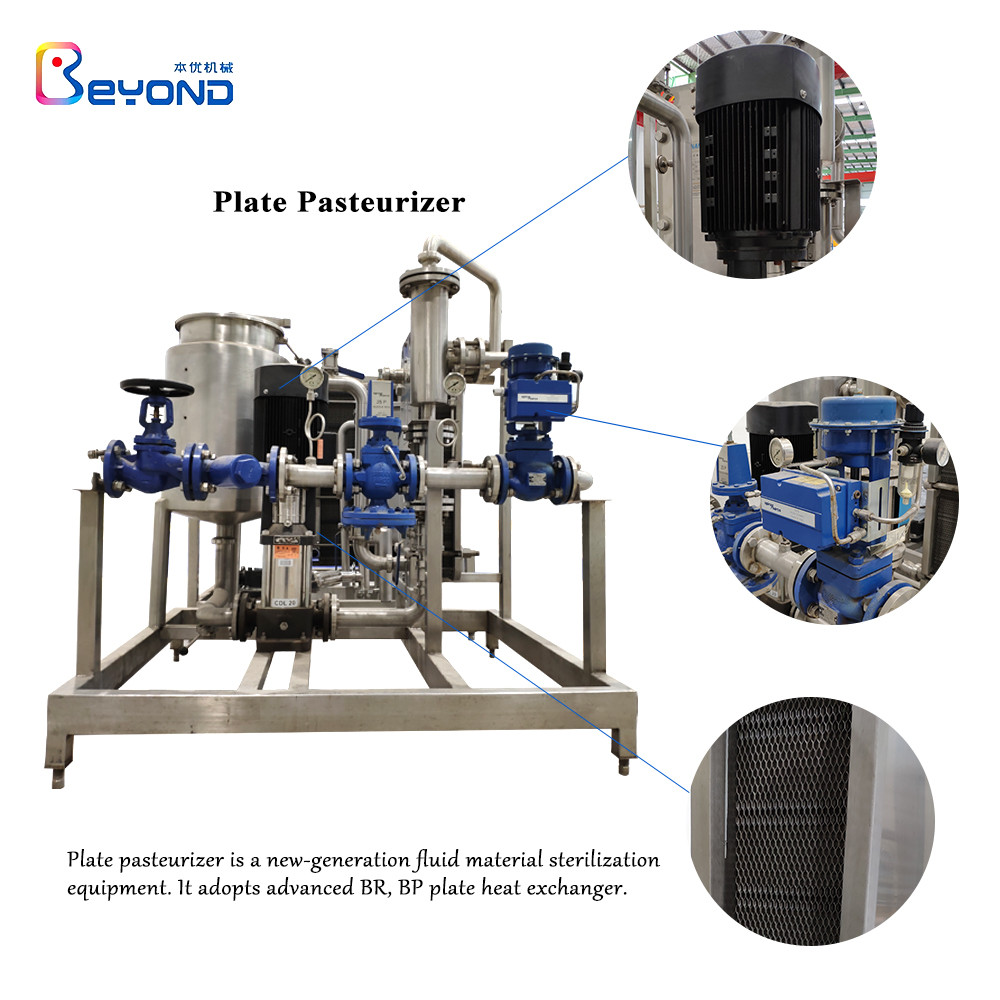

    Plate pasteurizer/Tubular pasteurizer/tube-in-tube pasteurizer


    Application: This unit is used as Pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream etc.), and also pre-sterilize material when producing sterilized milk (long life milk).


    Features:

    This unit can be connected with separator, homogenizer, flash evaporator & degasser etc.


    This machine has features of high heat recovery efficiency, low energy cost, compact design on the construction and easy operation, simple maintenance.


    Ensure food safety
    The booster pump generates a pressure difference between the pasteurization and non pasteurization sides of the device. In order to further improve safety, the differential pressure can be monitored through the pressure transmitter. If these transmitters "notice" that the differential pressure is not maintained, the product will be automatically transferred back to the balance tank for recirculation.


    Process design and parameter

    Production capacity:500L-20000/H
    Technical Parameter:5℃→65℃(homogenization)→85℃(15S) →5℃
    Control type:Full-automatic control (PLC with touch screen), semi automatic.

    Equipment configuration

    A. plate heat exchanger;

    B. material-balance bucket;

    C. Hot water-balance drum;

    D. hot water pump;

    E. product pump;

    F. steam & water mixer;

    G. electricity box;

    H. stainless steel pipes and valves etc.

    I.PLC and color touch screen;


    Technical Parameter:

    ModelCapacity

    Heat exchane

    area (m²)

    Total power

    (kw)

    Steam consumption

    (kg/h)

    Dimension

    (L×W×H)mm

    Machine weight

    (kg)

    BR16-BS-0.50.555.2521200×1200×1500790
    BR16-BS-1185.2601500×1500×1800880
    BR16-BS-22 t/h1361041800×2000×1800980
    BR26-BS-33 t/h2061562000×2000×22001080
    BR26-BS-4-54-5 t/h30-4582602250×2000×22001250
    BR26-BS-6-86-8 t/h35-5084002250×2000×22001250
    BR26-BS-1010 t/h60115202800×2000×22001650
    BR35-BS-1515 t/h75117803000×2200×22002150
    BR35-BS-2020 t/h80119453300×2200×22002350

    Technical parameter: 5℃→65℃(homogenization) →85~95℃(15S) →5℃
    This unit can be connected with separator, homogenizer, flash evaporator & degasser ect. This unit is used as pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream ect.) ,and also pre-sterilize material when producing pasteurized milk(long life milk).
    This machine has features of high heat recovery, lower energy cost, strict design on the construction and easy operation, simple maintenance.
