Double Fruit Pitting Machine/Destoner

1.Usage: This machine is mainly used for pitting of stone fruit such as peach and apricot at room temperature. It is one of the key equipment in the fruit pulp production line of stone fruit.

1 Fruits with hard cores, such as peaches and apricots;

2 It can effectively separate the fruit core and pulp;

3 The meat scraper and rubber roller can be replaced according to the usage conditions, and the replacement and installation are convenient.According to the size and type of fruit, and the degree of rubber roller wear, the roller gap can be adjusted conveniently and quickly to obtain the best pitting effect.

2.Components of the equipment:

Technical parameter

3.Working principles

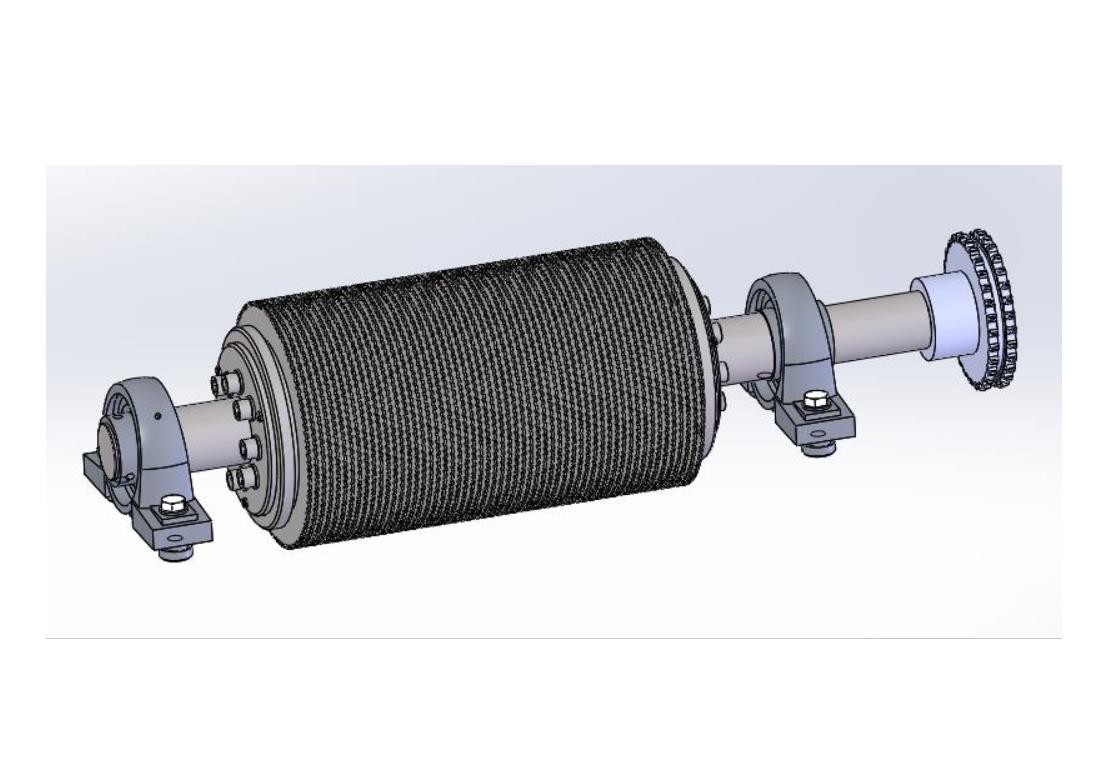

When working, the cleaned fruit enters through the feed port, and is pressed between the geared roller and the rubber roller by the reciprocating pressure core mechanism. The two rollers rotate opposite to each other, and most of the fruit pulp is pressed into the gap of the geared roller. The core is squeezed in a rubber roller with elasticity, and the comb plate digs out the pulp from the gap between the gear discs. The core with pulp enters the core washing unit to complete the core separation.

Considering that the size of the core is different in each batch, the bearing mounting screw hole of the rubber roller is designed to be waist-shaped, and there can be a certain adjustment distance to adjust the distance between the rubber roller and the tooth roller to adapt to different batches of different sizes of cores.

4.Technical descriptions

Equipment specifications: The external dimensions of the equipment are long ~ wide ~ high ~, the height of the inlet is 1200, the height of the outlet is about 700, the material of the main body of the equipment is SUS304.
The whole body material is SUS304, the bracket is made of 100*100*2.0mm stainless steel tube and SUS304 welding. The special material is heat-treated geared roller and food-grade rubber roller, the roller gap can be adjusted, frequency conversion speed regulation, organic cover, with two additional points hopper.

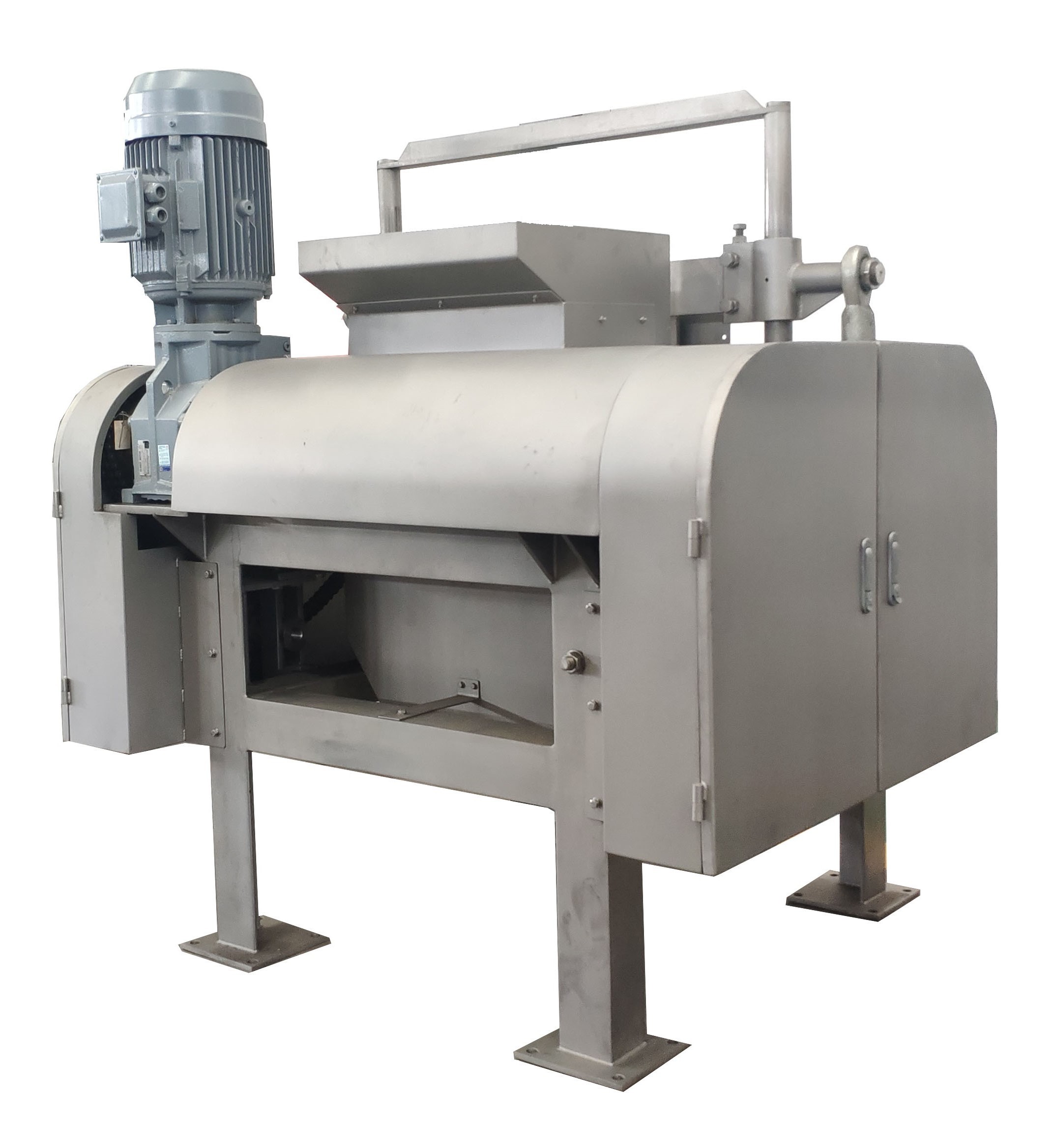

5.Equipment photos
